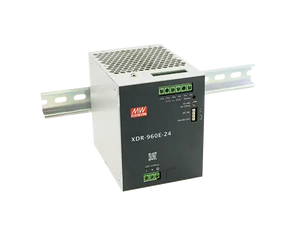

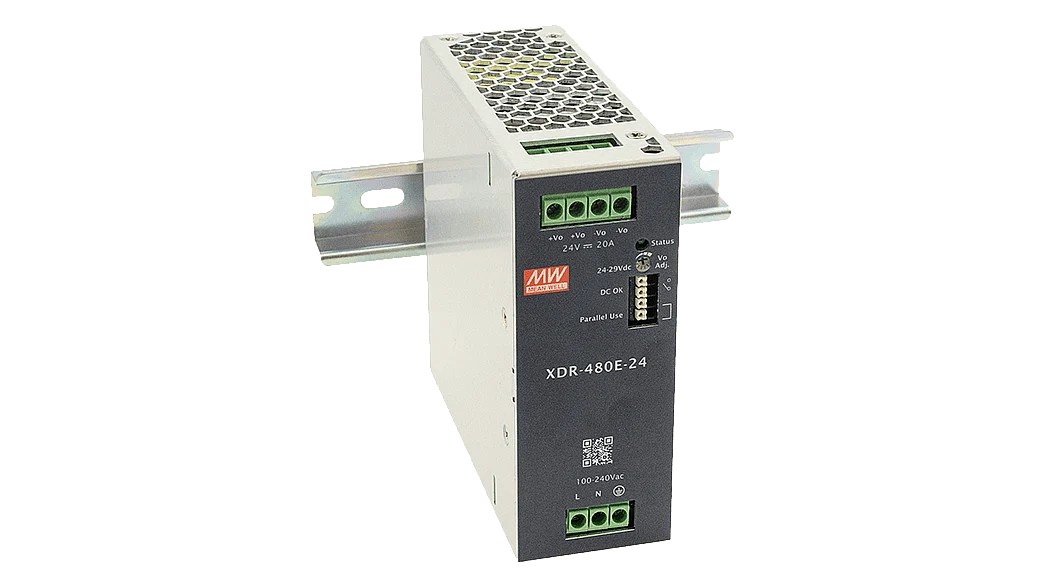

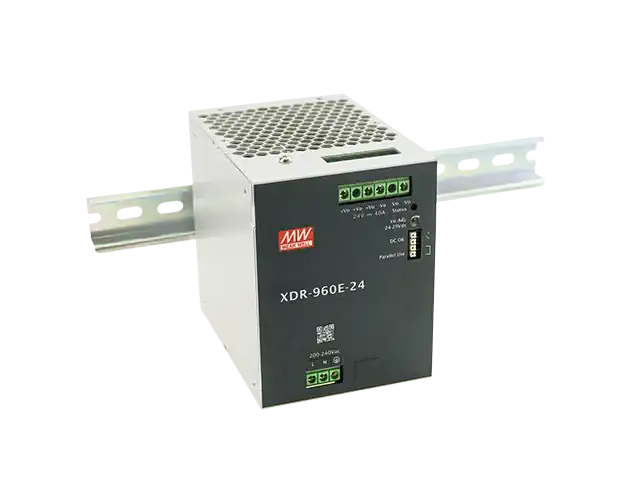

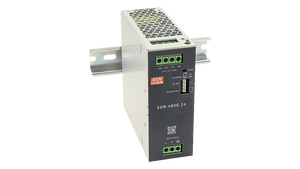

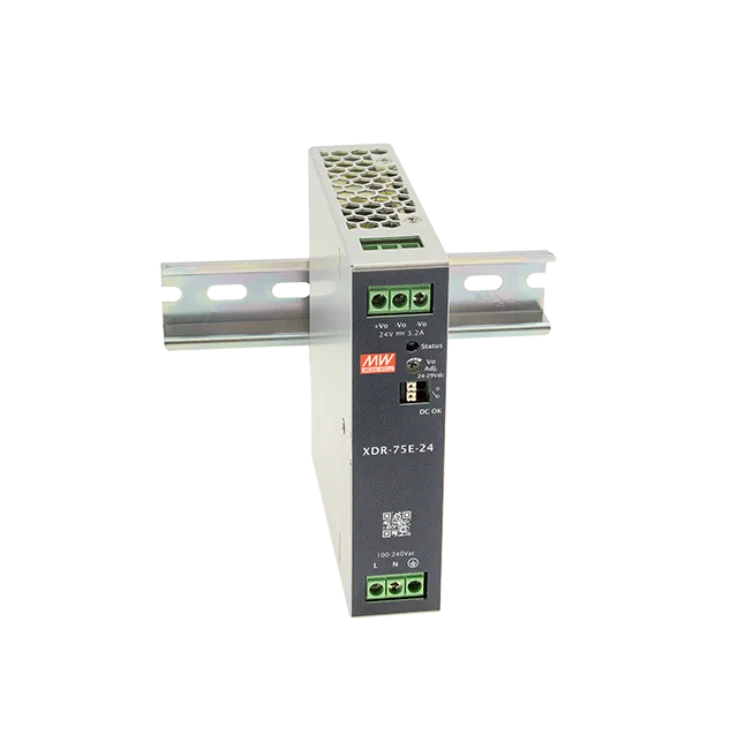

XDR- E series

Features:

85~264Vac input range

Global certificates in multi-fields:
CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1)

Ultra slim width: 30~96mm (by model)

High efficiency up to 96% and no load power dissipation <1W~3.6W (by model)

Current sharing Up to 3840W for parallel use (XDR-480E/960E only)

Over voltage category III (OVC III)

-40~+70℃ wide range operation temperature (>+50℃ derating)

Can be installed on DIN Rail TS-35/7.5 or 15

3 years warranty
