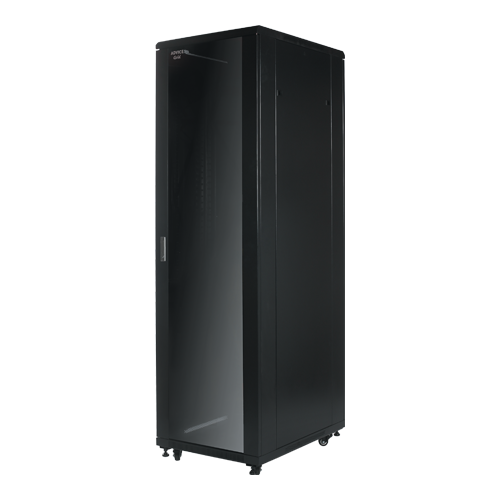

ADG-SNB-6542 - 42U

  • ADG-SNB-6542 - 42U - ADVICE.CO.IL

Dimensions:

W-600, D-500, H-2055. Different height and depth dimensions can be provided upon customer request.

Description:

  • The cabinet was designed for high-density communication servers located in an IT environment.
  • The cabinet is made of steel.
Application:
  • Storage and security of servers, data servers, and communication servers intended for server rooms, computer rooms (DATA CENTER).
Features:
  • Adjustable vertical mounts
  • The cabinet is made of steel
  • 19" compatible
  • Removable doors and side panels
  • Load capacity: 800 kg
  • Protection class: IP20
Cabinet Contents:
  • Top cover
  • Bottom cover
  • Frame
  • Front glass door
  • Rear door with ventilation holes
  • Side panels
  • Horizontal rails
  • Vertical posts
  • Wheels (2 with brakes)
  • Leveling feet
  • 2 fans
  • 1 cable management unit
Options / Add-ons:
  • Fixed shelf
  • Sliding shelf
  • Cable management accessories
  • Ventilation / cooling solutions
  • Airflow management
  • Power strips

Standards:
ANSI/EIA RS-310-D. IEC297-2. DIN1494, PART 1. DIN41494, PART 7. GB/T3047:2-92 STANDARD
IP20




Technical Specifications
Specification - ADG-SNB-6542 - 42U


Specification ADG-SNB-6542 - 42U EN | Specification ADG-SNB-6542 - 42U HE
