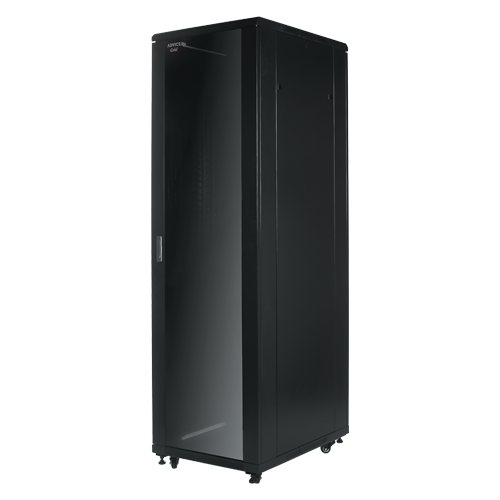

ADG-SNB-6644 - 44U

44U communication cabinet, 600*600*2143mm. Different height and depth dimensions can be provided according to customer demand.

Features:

• Adjustable vertical harnesses
• The cabinet is made of steel
• 19" compliant
• Removable doors and side panels
• Loading capacity, 800 kg
• Protection rating, IP20

Cabinet Contents:

• Top cover
• Bottom cover
• Frame
• Front glass door
• Rear door with ventilation holes
• Side panels
• Horizontal beams
• Vertical bars
• Wheels (2 with brake)
• Leveling feet
• Fans

Options / Add-ons:

• Fixed shelf
• Sliding shelf
• Cable management accessories
• Ventilation / cooling solutions
• Air flow management
• Power strips

Standards:

• ANSI/EIA RS-310-D. IEC297-2 . DIN1494, PART 1 . DIN41494, PART 7 . GB/T3047:2-92 STANDARD
• IP20

Technical Specifications

Specification ADG-SNB-6644 - 44U EN | Specification ADG-SNB-6644 - 44U HE
