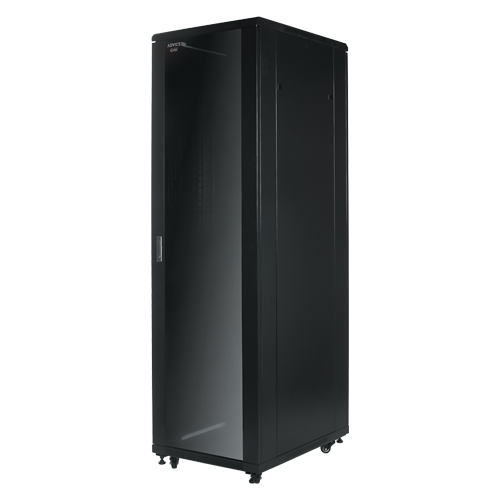

ADG-SNB-6844 - 44U

44U Communication Cabinet, 600*800*2143mm. Different height and depth dimensions can be supplied per customer request.

Features:

• Adjustable vertical harnesses
• The cabinet is made of steel
• "19" compatible
• Removable doors and side panels
• Load capacity, 800 kg
• Sealing degree, IP20

Cabinet contents:

• Top cover
• Bottom cover
• Frame
• Glass front door
• Rear door with ventilation holes
• Side panels
• Horizontal beams
• Vertical bars
• Wheels (2 with brake)
• Leveling feet
• 4 fans
• 1 cable management unit

Options / Add-ons:

• Fixed shelf
• Pull-out shelf
• Cable management accessories
• Ventilation / cooling solutions
• Airflow management
• Power strips

Standards:

• ANSI/EIA RS-310-D. IEC297-2 . DIN1494, PART 1 . DIN41494, PART 7 . GB/T3047:2-92 STANDARD
• IP20



Technical Specifications

Specification ADG-SNB-6844 - 44U EN

Specification ADG-SNB-6844 - 44U HE
