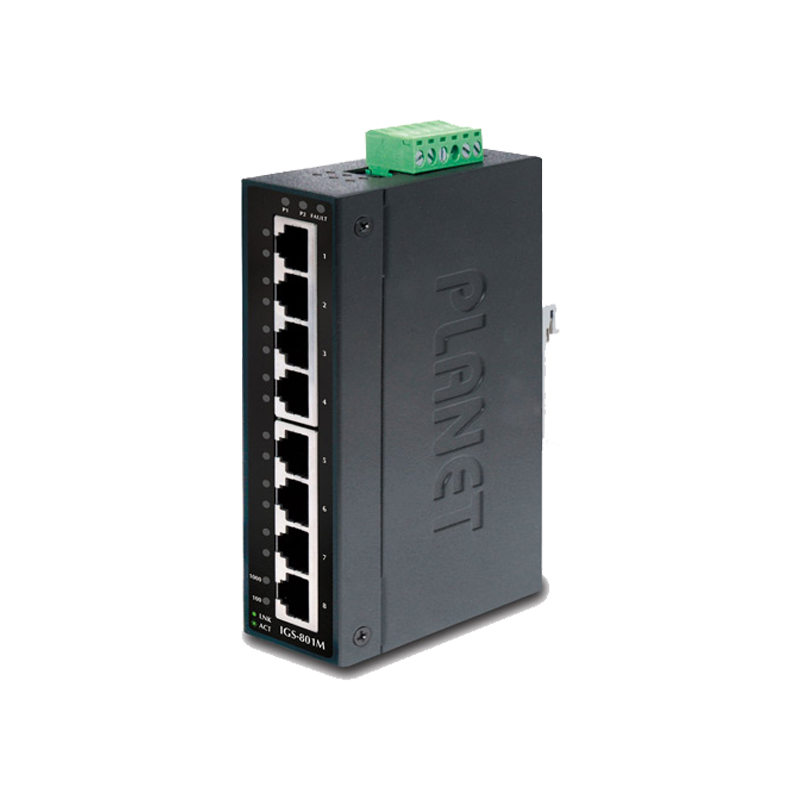

IGS-801M

Previous Product | Next Product
Product Description
8-Port 10/100/1000Mbps Managed Industrial Ethernet Switch

Physical Port
  • 8-Port 10/100/1000BASE-T RJ45 copper
Industrial Case/Installation
  • IP30 metal case protection
  • DIN-rail and wall mount design
  • Redundant power design
  • - 12 to 48V DC, redundant power with polarity reverse protect function
  • - AC 24V power adapter acceptable
  • Supports EFT 6000VDC protection for power line
  • Supports 6000VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
  • - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • - Protocol VLAN
  • - Voice VLAN
  • - Private VLAN
  • - Management VLAN
  • - GVRP
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)
  • - RSTP (Rapid Spanning Tree Protocol)
  • - MSTP (Multiple Spanning Tree Protocol)
  • - STP BPDU Guard, BPDU filtering and BPDU forwarding
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • - Cisco ether-channel (static trunk)
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
Quality of Service
  • Ingress and egress rate limit per port bandwidth control
  • Storm control support
  • - Broadcast/Unknown unicast/Unknown multicast
  • Traffic classification
  • - IEEE 802.1p CoS
  • - TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
Security
  • Authentication
  • - IEEE 802.1X port-based network access authentication
  • - Built-in RADIUS client to co-operate with the RADIUS servers
  • - RADIUS/TACACS+ login user access authentication
  • Access control list
  • - IPv4/IPv6 IP-based ACL
  • - MAC-based ACL
  • MAC security
  • - Static MAC
  • - MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH/SSL
