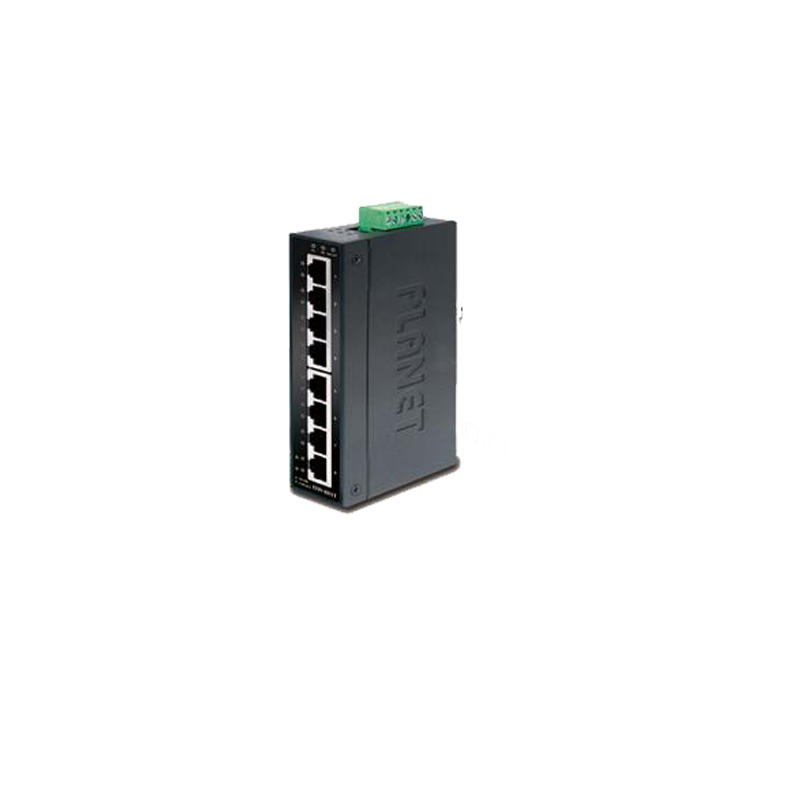

ISW-801T

Previous Product | Next Product
Product Description
8-Port 10/100Mbps Industrial Fast Ethernet Switch for Wide Operating Temperature

Physical Port
  • 8-port 10/100Mbps RJ-45 with auto MDI/MDI-X function
Layer 2 Features
  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Ethernet standard
  • Supports auto negotiation and 10/100Mbps half / full duplex mode
  • High performance Store and Forward architecture, broadcast storm control, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Backplane (Switching Fabric): 1.6Gbps
  • Integrated address look-up engine, supports 2K absolute MAC addresses
  • Automatic address learning and address aging
  • CSMA / CD Protocol
Industrial case / installation
  • IP-30 metal case
  • DIN rail and wall mount design
  • 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
  • Supports EFT protection 6000 VDC for power line
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • Free fall, shock, vibration industrial stability

Specification
