ISW-804PT-M12

Previous Product
Product Description

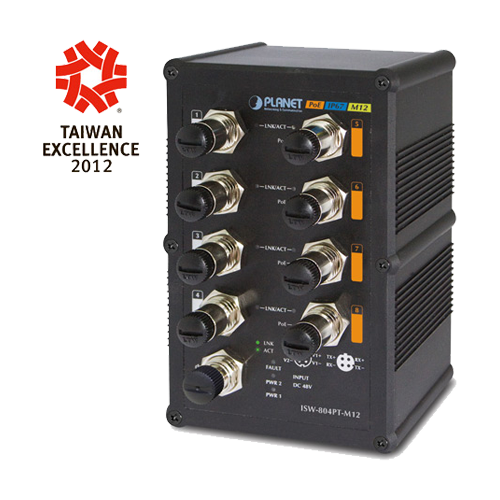

Industrial IP67 Rated 8-Port 10/100Mbps M12 Fast Ethernet PoE Switch with Wide Operating Temperature

Physical Port
  • 8-port 10/100Mbps M12 Connector with IP67 protection
  • 4-port IEEE 802.3af PoE Ports (Port 5 to port 8)
Layer 2 Features
  • Supports auto negotiation and 10/100Mbps half / full duplex mode
  • High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Backplane (Switching Fabric): 1.6Gbps
  • Integrated address look-up engine, supports 2K absolute MAC addresses
  • Automatic address learning and address aging
  • CSMA/CD Protocol
Power over Ethernet
  • 4 Ports compliant with IEEE 802.3af Power over Ethernet / PSE Standard
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Auto-detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
Industrial Case / Installation
  • IP67 aluminum metal case protection
  • DIN rail and wall mount design
  • Waterproof / dustproof design
  • 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
  • Supports EFT 6000VDC protection for power line
  • Supports ESD 6000 VDC Ethernet protection
  • -40 to 75 degrees C operating temperature
