Matrix 60-90KVA

Previous Product | Next Product
Product Description

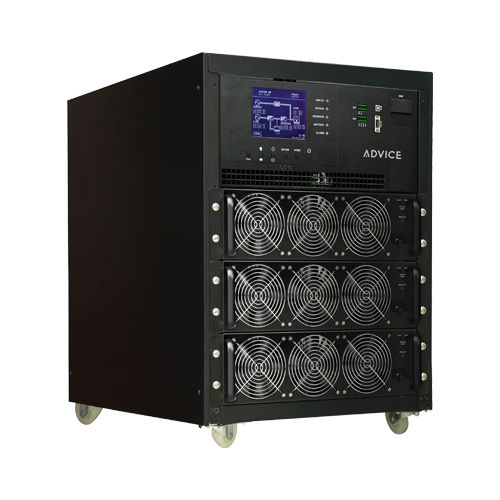

Matrix 60-90KVA

MODEL: M60kw, M90kw

  • High efficiency online double conversion technology
  • Output power factor 1
  • N+1 (or more) Parallel redundancy – High reliability
  • Wide input frequency range 40Hz-70Hz
  • Wide input voltage range 305-478 VAC at 100% load 208-478 VAC <70% load
  • Flexible power modul 20KW/30KW
  • Modular design lowers MTTR
  • Adjustable battery numbers
  • Adjustable charging current
  • Built-in maintenance bypass switch for easy maintenance without interruptible
  • Graphic 5.7" LCD design for easy configuration

Specification

Specification Matrix 60-90KVA EN

Specification Matrix 60-90KVA RU
