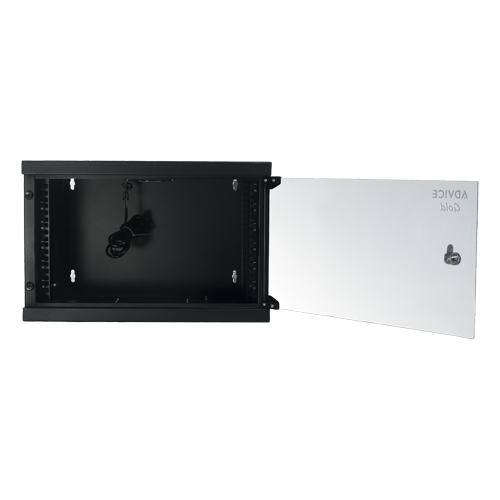

ADG-SMK-6606S-6U

6U communication wall-mount cabinet
Dimensions: W-600, D-600, H-310 mm
ADG-SMK-6606S-6U

Description-

6U communication cabinets with glass doors were designed for small businesses, offices, communication rooms, classrooms,
restaurants, etc.

Features-

Welded cabinet frame
The cabinet is made of steel
Suitable for installing 19" equipment
Removable side panels and front door
Maximum static load capacity 50 kg
Wall-mount installation

Cabinet contents-

Frame
Side panels
Front metal door
Vertical harnesses
2 fans
Set of hardware for mounting panels (cage nut)
Cable entry from top and bottom panel.

Options / additions-

Fixed shelf
Sliding shelf
Cable management accessories
Power strips
Routing panel

Standards-

ANSI/EIA RS-310-D. IEC297-2 . DIN1494, PART 1 . DIN41494, PART
7GB/T3047:2-92 STANDARD
IP20
Load capacity 50 kg

Specification ADG-SMK-6606S-6U HE
