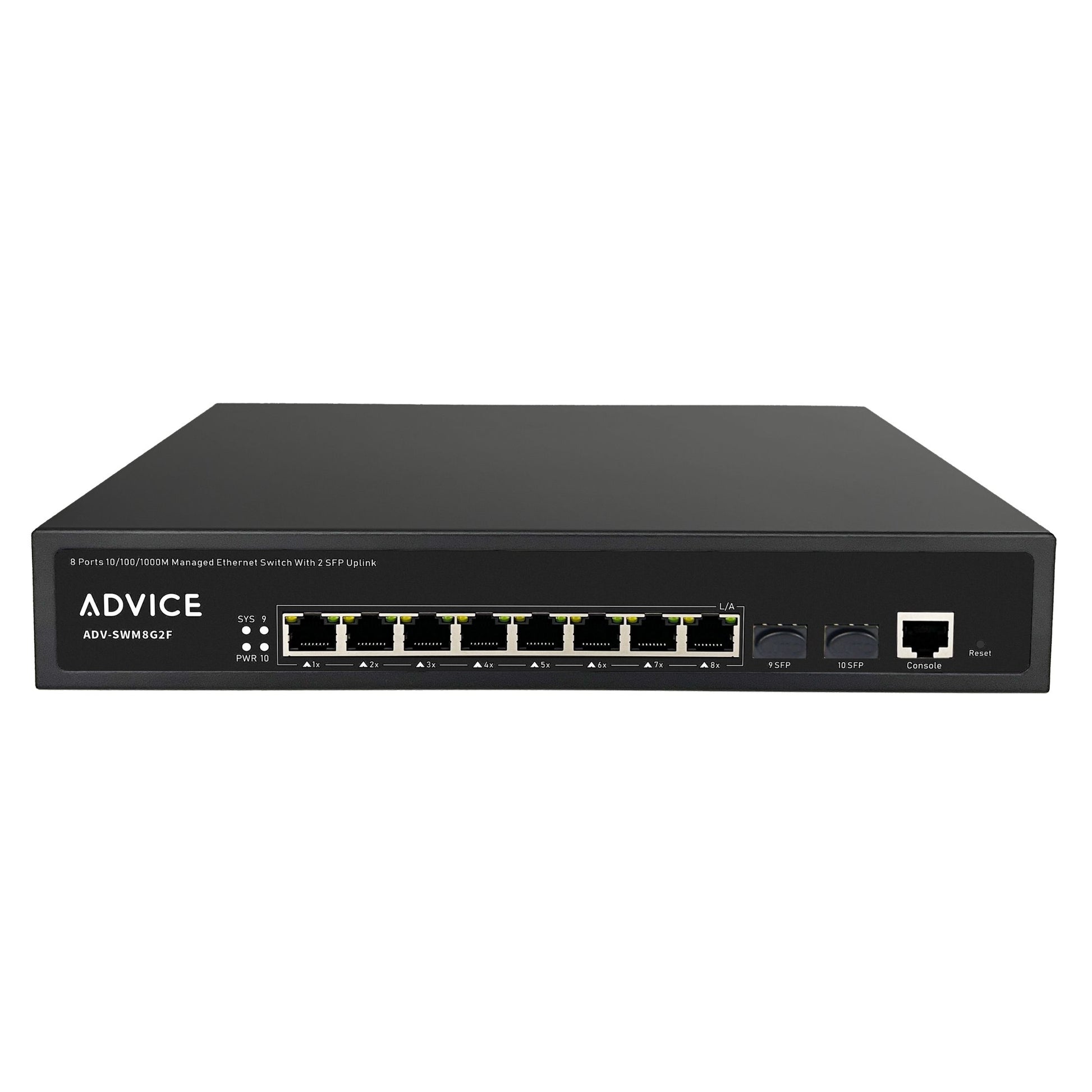

ADV-SWM8G2F
8-Port 10/100/1000Mbps
Managed Ethernet Switch with 2 port 1.25G SFP Uplink
Managed Ethernet Switch with 2 port 1.25G SFP Uplink
Key Features:
Ports: Provide 8*10/100/1000Mbps Ethernet ports with 2*1.25G SFP Uplink
Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
Fiber Port: 4*1.25Gbps SFP Uplink
Wide Application: Designed for Wifi AP and IP Security camera.VoIP etc
Managed: Support remote web managed,VLAN and storm contro and IPV6 managementl etc.
Surge protection: Protect the device from lighting surges and others electrical hazards
Installation: Rack mount with easy installation
High performance switch with 2 gigabit SFP Uplink
This 8 ports gigabit Switch provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 64Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the switch enables routers and servers to directly connect to the Switch for fast and reliable data transfer.
All the RJ45 copper interfaces of the ADV-SWM8G2F support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. With 2 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution
Cost-effective IPv6 Managed Gigabit Ethernet Switch Solution
With layer 2+ managed Gigabit Ethernet Switch, It provides IPv6/IPv4 management and built-in L2/L4 Gigabit Switching engine, and supports high-speed transmission of surveillance images and videos
All the RJ45 copper interfaces of the ADV-SWM8G2F support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. With 2 SFP module slot available, the SFP uplink port is ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra high speed data transferring, Beside the SFP can transmitte the date with Max 100Km distance with more economic solution
Cost-effective IPv6 Managed Gigabit Ethernet Switch Solution
With layer 2+ managed Gigabit Ethernet Switch, It provides IPv6/IPv4 management and built-in L2/L4 Gigabit Switching engine, and supports high-speed transmission of surveillance images and videos
Robust Layer 2 Features
The ADV-SWM8G2F can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The ADV-SWM8G2F allows the operation of a high-speed trunk combining multiple ports. It consists of a maximum of 9 trunk groups with 2 ports for each group, and supports connection fail-over as well.
Surge Protection Design
Reaching 6KV surge protection, the Ethernet ports owns the capacity to keep the Ethernet Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
Reaching 6KV surge protection, the Ethernet ports owns the capacity to keep the Ethernet Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
