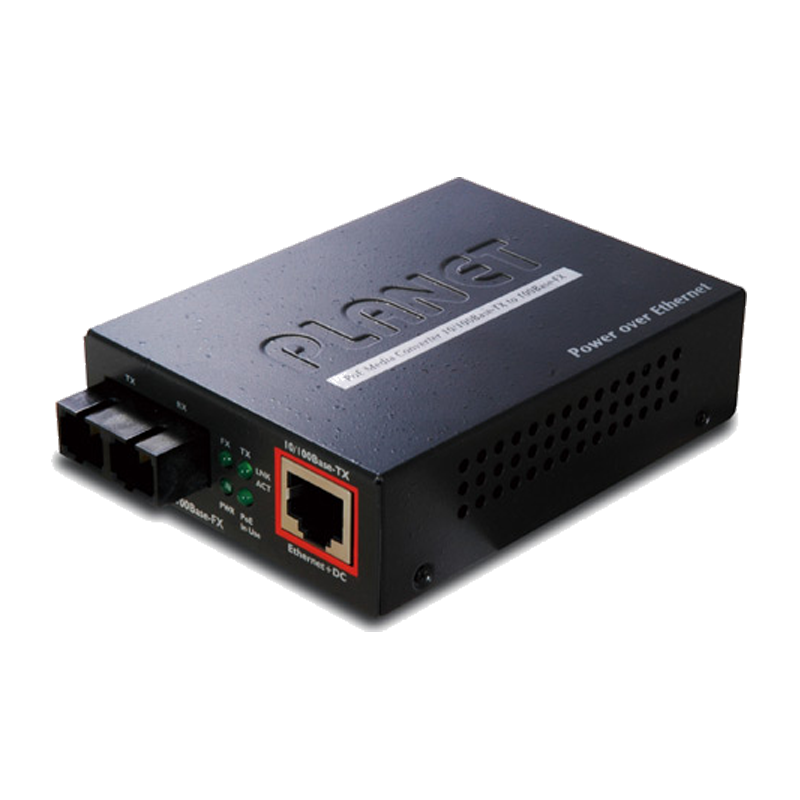

FTP-802 / FTP-802S15

Product Description
100Base-FX to 10/100Base-TX PoE Media Converter

  • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3afPower over Ethernet standards
  • Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port
  • IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss
  • Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port
  • Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation
  • 100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm) on FTP-802
  • 100Base-FX interface for up to 15km (single-mode fiber 9µm/125µm) on FTP-802S15
  • DIP-switch: LFP (Link Fault Pass-through) mode selection
  • Compact in size, easy to install
  • LED indicators for easy network diagnostics



Specification
