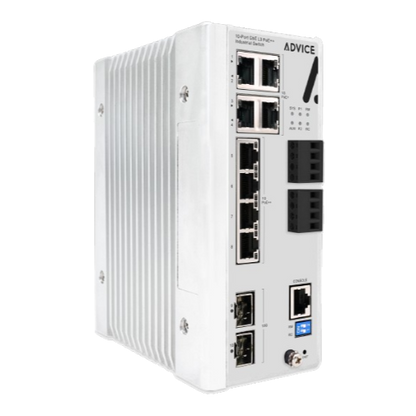

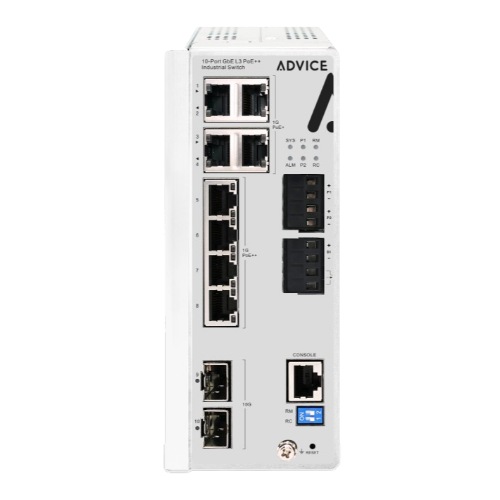

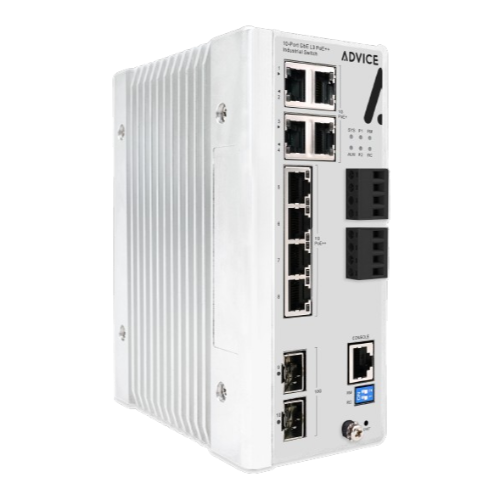

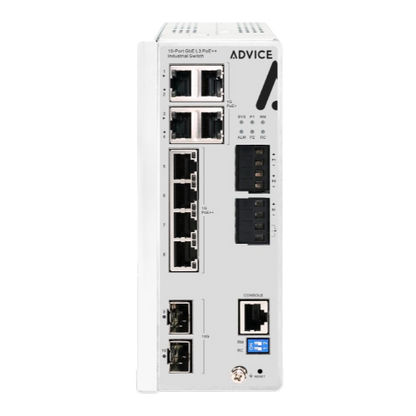

GIS8UP2X360 - Industrial L3 PoE++ Switch

GIS8UP2X360 L3 GbE PoE++ switch is the next-generation Ethernet Switches offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features.
GIS8UP2X360 delivers 8 (10M/100M/1G) RJ45 with 4 PoE+ and 4 PoE++ (Support 802.3at/802.3bt, and total up to 360W) ports, 2 x10GbE SFP+ ports and RJ45 Console port. GIS8UP2X360 provides high HW performance and environment flexibility for industrial applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. GIS8UP2X360 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Features:
  • Fully L2 features provide easier manageability, security and QoS
  • IEEE 802.3at PoE+ / 802.3bt PoE++
  • IEEE 1588v2 PTP
  • ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  • ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  • DHCP Server
  • IPv4/IPv6 L3 static route
  • RIP v1/v2 and OSPFv2/v3 L3 dynamic routing
  • Built in Device Management System (DMS)
