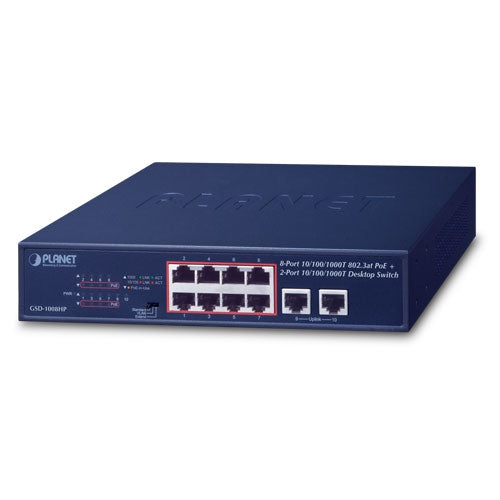

GSD-1008HP

Skip to product information


8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T
Desktop Switch (120 watts)
GSD-1008HP

Flexible, Extendable and Centralized Power Distribution
PLANET GSD-1008HP provides eight 10/100/1000T ports featuring 30-watt 802.3at PoE+, a total 120-watt PoE budget and extra two uplink ports to fulfill the demand of sufficient PoE power for HD IP surveillance and Wi-Fi system in a small-scale but high-performance network. With the same desktop-sized and compact metal housing, it makes the placement of the unit convenient and provides a quick and easy PoE PDs deployment with power feeding.

ย

Ethernet Data Transmit Distance Extension
The built-in solid DIP switch provides "Standard", "VLAN" and "Extend" operation modes. The GSD-1008HP operates as a normal IEEE 802.3at PoE+ switch in the "Standard" operation mode.
The "VLAN" operation mode features with port-based VLAN function that helps to prevent the IP cameraโ€™s multicast or broadcast storm from influencing each other.
In the โ€œExtendโ€ operation mode, the GSD-1008HP operates on a per-port basis at 10Mbps duplex operation but supports 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GSD-1008HP provides an additional solution for 802.3at PoE+ distance extension, thus saving the cost of Ethernet cable installation. Furthermore, its VLAN isolation function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the โ€œExtendโ€ operation mode.


Specification
