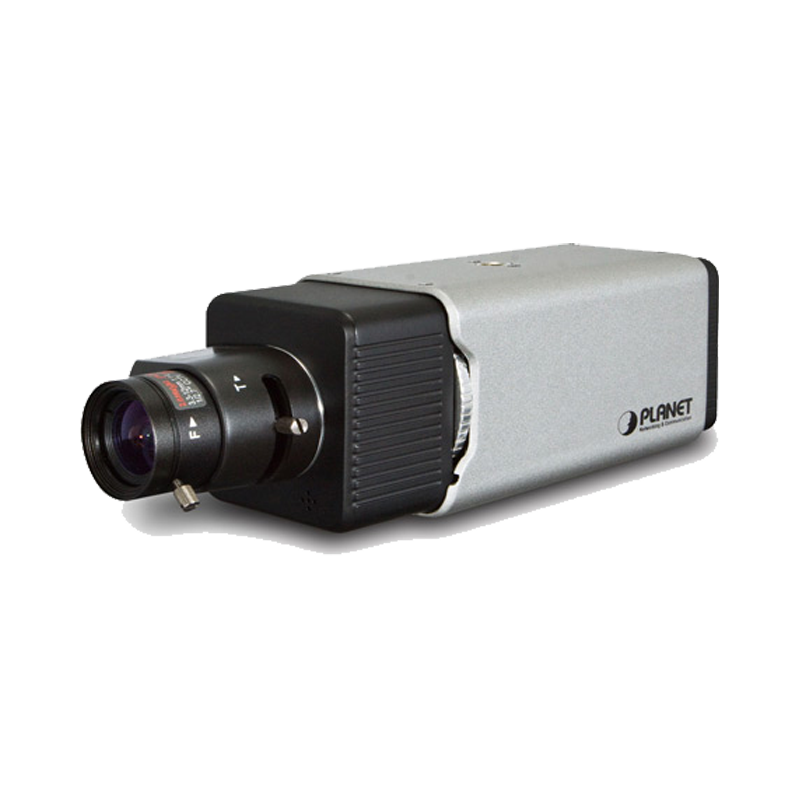

ICA-2200
Full HD PoE Box IP Camera
Description
Camera
- 1/2.7" Progressive 2MP CMOS sensor
- 3.3~12 mm vari-focal, auto-iris lens
- 0.5 lux minimum illumination at F1.4
- Maximum resolution 1920 x 1080
- Removable IR-cut Filter for Day & Night function
- CS or C-mount adjustment ring for flexible lens installation
Video / Audio
- Simultaneous H.264 / MPEG-4 and M-JPEG video compression
- Simultaneous multi-stream support
- H.264 high profile, main profile and baseline
- Max. resolution 1080P at 30fps
- 3DNR to improve picture quality at low lux
- WDR Enhancement to enhance visibility under extremely bright or dark environments
- 2-way audio support with enhanced audio quality
Network and Configuration
- Compliant with IEEE 802.3af PoE interface for flexible deployment
- Auto MDI/MDI-X supported
- Supports IPv6 protocol in addition to the standard IP protocol version 4 (IPv4)
- RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management
- ONVIF compliant
- Built-in Samba client for NAS
- 3GPP for 3G mobile remote applications
- RS-485 interface for P/T scanner control
- Digital Input / Output for integration with sensors and alarms
- Cam Viewer 3 central management software supported
Technical Specifications
Specification ICA-2200 EN
