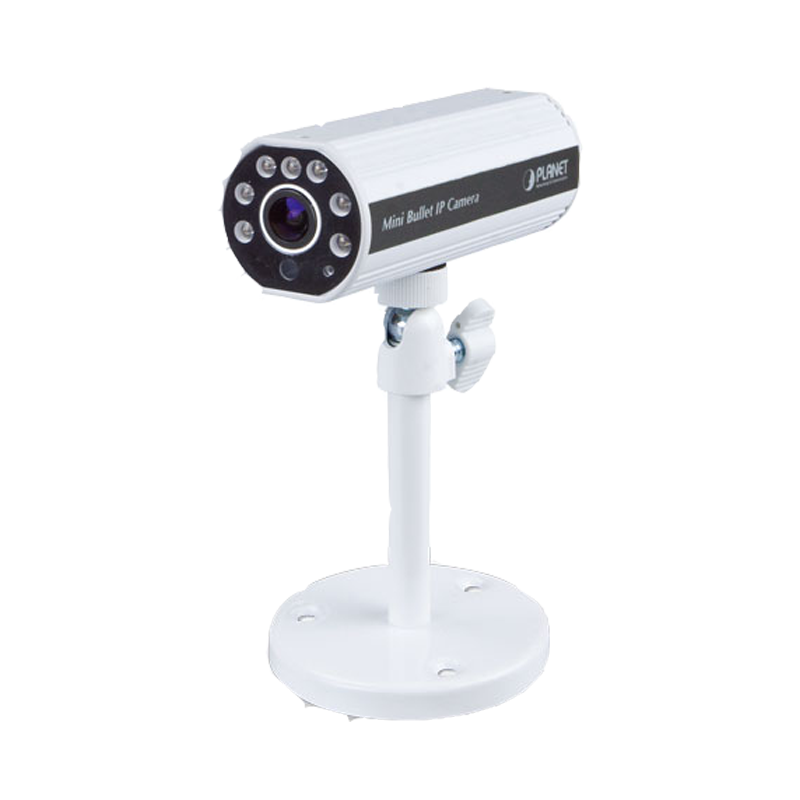

ICA-3110

• 1/4" progressive scan CMOS sensor
• 0.2 lux Minimum Illumination at F1.8
• Maximum resolution 1280 x 800
• Easily-recessed mount design
• Convenient nano-design blends in nicely with any surrounding
• Built-in 7 IR LEDs for IR monitoring distance of up to 5 meters

• H.264 and M-JPEG video compression simultaneously
• Simultaneous Multi-H.264 streams support
• H.264 main profile and baseline profile
• Max. resolution of 1 mega-pixel at 30fps
• DNR to improve picture quality at low Lux
• WDR Enhancement function strengthens visibility under extremely bright or dark environments
• 2-way audio support with enhanced audio quality

• Compliant with IEEE 802.3af PoE interface for flexible deployment
• Auto MDI/MDI-X supported
• Supports IPv6 in addition to IPv4
• Built-in Samba client for NAS
• RTSP / UPnP / 3GPP / HTTPS protocols selectable
• 3GPP for 3G mobile remote applications
• Access anytime and anywhere for PLANET easy DDNS

• ONVIF compliant for interoperability
• Tamper and motion detection for unauthorized changes
• Micro SD card local video recording supported
• Easy configuration and management via Windows-based utility or web interface
• Cam Viewer 3 Central management software supported
• Digital Input/Output for integration with sensors and alarms

מפרטים טכניים

Specification ICA-3110 EN
