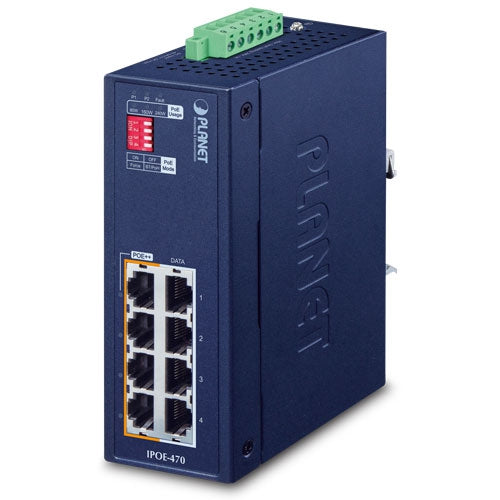

IPOE-470 Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub (-40~75 degrees C)
IPOE-470 - Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub (-40~75 degrees C)
Physical Ports
- Four 10/100/1000BASE-T Gigabit RJ45 interfaces
– 4-port data input - Four 10/100/1000BASE-T Gigabit RJ45 interfaces
– 4-port data + power output
- Complies with 802.3bt Power over Ethernet Plus Plus type 4 PSE
- Backward compatible with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PSE
- Up to 4 IEEE 802.3at/IEEE 802.3bt PoE devices powered
- Up to 240-watt PoE budget
- Supports PoE output power up to 95 watts for each PoE port
- All PoE ports support 802.3at end-span/mid-span PoE 36- watt injector function
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Forwards both Ethernet data and PoE power to remote device over a 100-meter (328ft.) distance
- 3 real-time PoE power usage indicators
- IP30 metal case
- DIN-rail and wall-mount designs
- 1 terminal block for master and slave power input with reverse polarity protection
– IPOE-470 supports 48~54V DC redundant power
– IPOE-470-12V supports 12~54V DC redundant power - Supports 6KV DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Plug and Play installation
Specification
