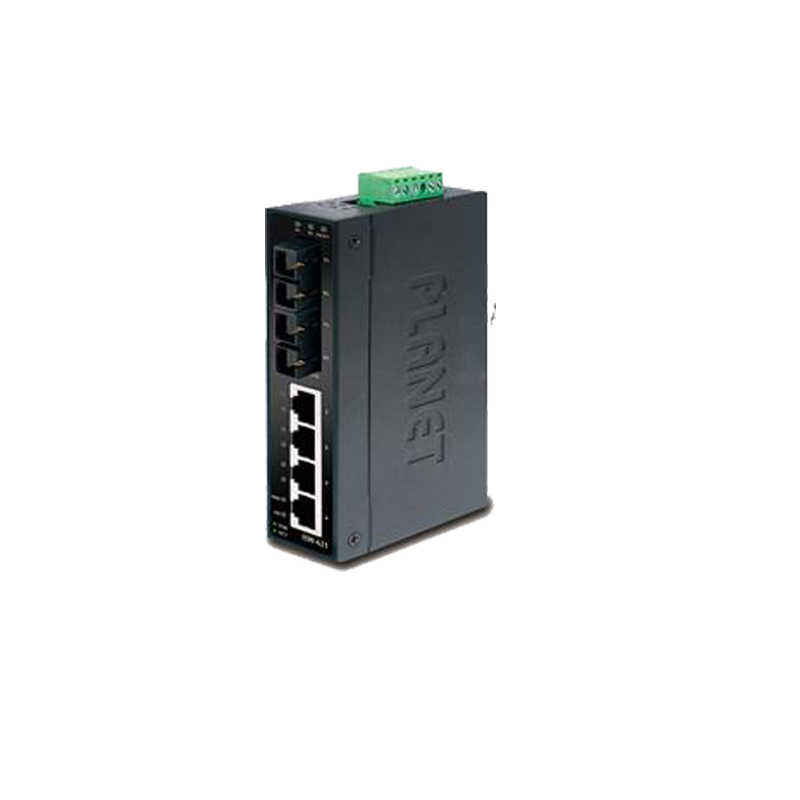

ISW-621T / ISW-621TS15

  • ISW-621T / ISW-621TS15 - ADVICE.CO.IL
4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Ethernet Switch with Wide Operating Temperature (-40~75 degrees C)

Physical Port
  • 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
  • 2-port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
  • 2-port 100Base-FX interface on ISW-621TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance
Layer 2 Features
  • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
  • Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
  • High performance Store and Forward architecture
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Backplane (Switching Fabric): 1.2Gbps
  • Integrated address look-up engine, supporting 2K absolute MAC addresses
  • 1Mbit on-chip frame buffer
  • Automatic address learning and address aging
  • CSMA/CD Protocol
Industrial Case / Installation
  • IP30 metal case / protection
  • DIN rail and wall mount design
  • 12 to 48V DC, redundant power with polarity reverse protection and connective removable
  • 　terminal block for master and slave power
  • Supports EFT protection 6KV DC for power line
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C wide operating temperature

Specification
