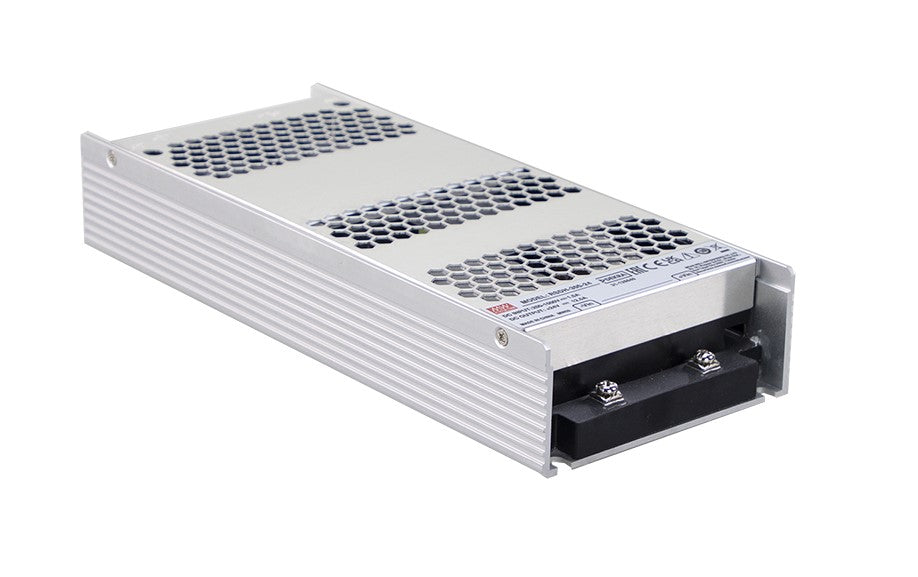

RSDH-300-48 MEAN WELL

RSDH-150/300 series’key features include: 250~1500Vdc ultra-wide input range, fanless design operational in -40～+80oC wide temperature range, 4KVac high isolation level, input/output complete protection features, superior EMC performance, high altitude 5000M operation, and compliance to the IEC/EN62109-1 PV safety. These features enable the RSDH-150/300 series to be suitable for PV, energy storage, charging station, and other applications that have high voltage to low voltage DC conversion requirement.



Features:
  • 250~1500Vdc ultra-wide input voltage
  • 4KVac I/O isolation
  • Free air convection, can operate between -40~+80℃ (+55℃@full load without derating), suitable for various installation conditions
  • Half encapsulated, helps with heat dissipation, 3G anti-vibration, and dust + moisture resistance
  • Fanless design, no noise
  • Excellent EMC performance, meet EN55032 Class A EMI performance without external components
  • Approvals: CB, DEKRA (IEC/EN62109-1), EAC, CE, UKCA
  • Warrenty: 3 years


Specification
