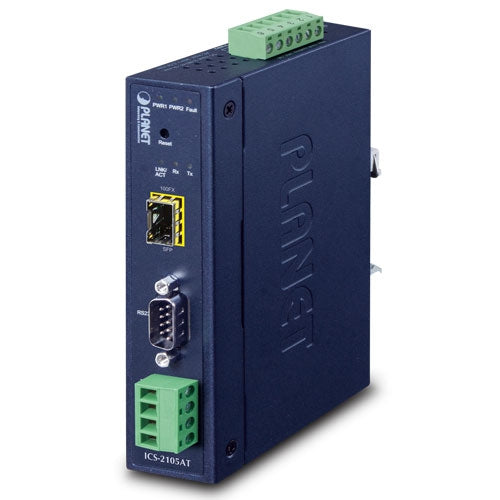

ICS-2102T / ICS-2102TS / ICS-2105AT

 IP30 Industrial 1-PORT RS-232/ RS-422/ RS-485 series Device Server

Description

Serial Interface
  • One DB9 interface that support RS232
  • One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 standards
  • Asynchronous serial data rates up to 921600bps
  • Data modes include VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
Ethernet Interface
  • 　Choice of fiber-connector from SC/LC, multi-mode/single mode fiber
Management
  • 　IPv4 and IPv6 dual stack management
  • 　Remote Management Interfaces
  • 　- IP-based Web management
  • 　- Telnet console management
  • 　- Windows-based VCOM utility supports searching, monitoring and configuration setting
  • 　IP NTP (Network Time Protocol) and DNS management
  • 　Standard TCP/IP interface and versatile operation modes
  • Software Protocol supports ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
  • Serial Operation mode selected via management interface
  • Pair Connection mode for connecting two serial devices over a network
  • Allows a maximum of 4 hosts to be accessed as TCP client mode
  • Firmware upgrade via HTTP protocol
  • Accessible IP security control to prevent illegal users
  • Event notification
  • - Remote Syslog server
  • - SNMP trap
  • - Relay output alarm
  • DHCP client for IP address assignment
  • PLANET Smart Discovery utility automatically finds the client devices on the network
Industrial Case / Installation
  • 　IP30 metal case protection
  • 　DIN rail and wall mount design
  • 　- 9 to 48V DC / 24V AC, redundant power with reverse polarity protection
  • 　Free fall, shock-proof and vibration-proof for industries
  • 　Supports extensive LED indicators for network diagnosis
  • 　Reset button for resetting to factory default
