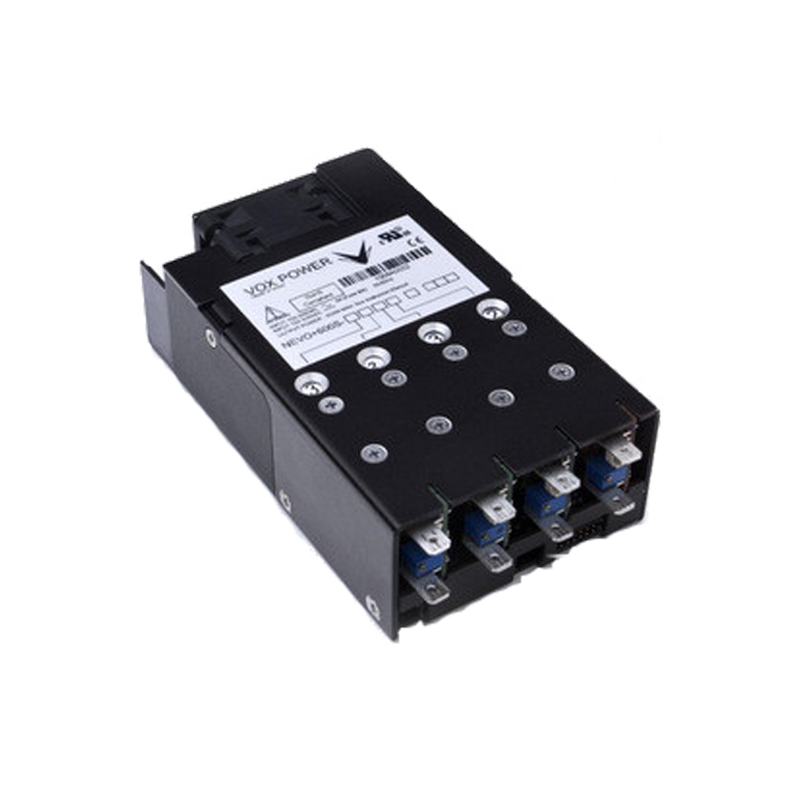

NEVO +600M

מוצר קודם
תיאור מוצר
The enhanced NEVO+ series features improved low input line derating delivers 600 watts without the need to derate for line voltages above 120Vac making the NEVO+ the ultimate power solution for products destined for the global market. Through the implementation of a fan control circuit the NEVO+ also features reduced fan noise. The NEVO+ delivers up to 600 watts from a 600 gram 5” x 3” x 1U package and consists of an input module together with up to eight isolated output modules. The series carry full UL60950 safety approvals and comply with EN61000?3, EN61000?4 and EN55002-B EMC Standards.

  • 600 Watt High Performance AC/DC Modular Power
  • Up to 600 Watt output with no derating for North America
  • Controlled cooling with reduced fan noise in standby mode
  • Medically certified to UL60601 3rd Ed
  • Complies to EMC Standards EN61000-3, EN61000-4 and EN550022-B
  • Highest Industry power density (25W/in³)
  • Smallest modular footprint – 5″ x 3″ x 1U
  • Lightest modular design – only 600 gram – 1watt/gram
  • Up to 89% efficient with high reliability performance
  • Remote current / voltage programming
  • Accurate current sharing
  • Current output signal
  • 5V 200mA bias supply
  • Field configurable
  • RoHS compliant
  • 24 hour samples
  • Two year warranty


Specification


Specification NEVO - OP1 EN

Specification NEVO - OP2 EN

Specification NEVO - OP3 EN

Specification NEVO - OP4 EN

Specification NEVO - OP5 EN

Specification NEVO - OP6 EN

Specification NEVO - OP7 EN
