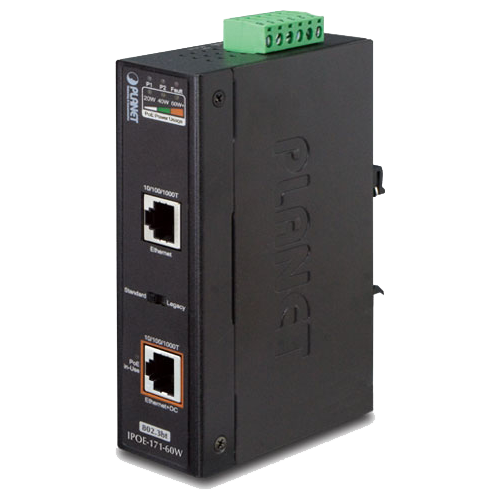

IPOE-171-60W

מוצר קודם | מוצר הבא
תיאור מוצר
Industrial Single-Port 10/100/1000Mbps 802.3bt PoE Injector (60 Watts, -40~75 degrees C, 48~56VDC)

Interface
  • 2 RJ45 interfaces
  • - 1-port Data + Power output
  • - 1-port Data input
  • 1 terminal block for master and slave power input. (Power Range: 48 ~ 56V DC redundant power)
  • 1 PoE mode (standard/legacy) DIP switch
Power over Ethernet
  • Complies with IEEE 802.3af/at/bt PoE end-span/mid-span PSE
  • Supports PoE power up to 60 watts for PoE port
  • Auto-detection of PoE IEEE 802.3af/at/bt equipment and devices from being damaged by incorrect installation
  • Monitors the status of the total PoE usage in real time
  • Remote power feeding up to 100m
  • Auto-detection of DC input voltage
Hardware
  • IP30 slim-type metal case
  • LED indicators for Power LED , PoE-in-Use LED and PoE Usage LED
  • Industrial Case and Installation
  • Solid wall mount or DIN-rail mount installation
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature

Specification
