IPOE-173S
Industrial Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

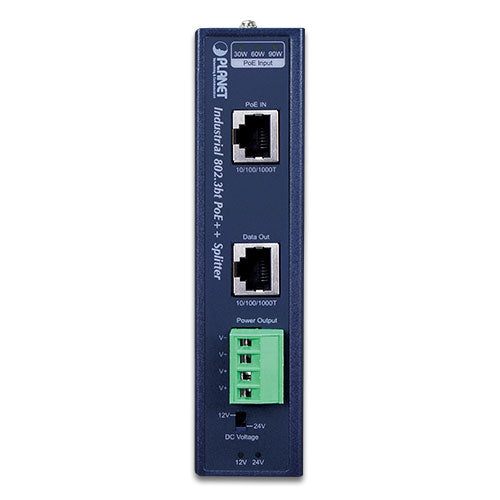

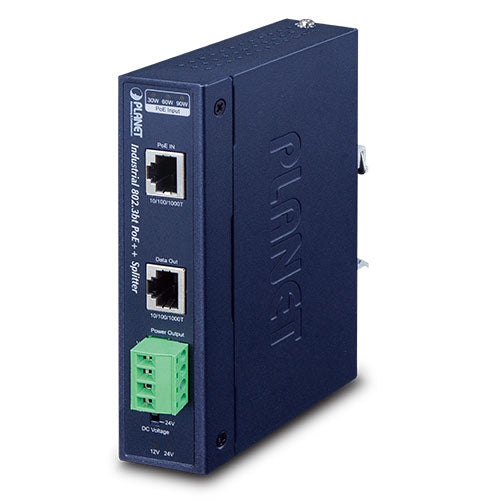

PLANET IPOE-173S is an Industrial-grade 802.3bt Power over Ethernet Splitter
which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++
type-4 PSE (power source equipment) over an UTP cable. It comes with a
selectable 12V or 24V DC DIP switch, enabling to deliver a maximum of 70-
watt power output to a non-PoE powered Ethernet device. It supports passive
10/100/1000Mbps Ethernet connection and distance up to 100 meters. To fulfill
the growing industrial applications, the IPOE-173S is designed to work under the
operating temperature range from -40 to 75 degrees C. The IPOE-173S is an
ideal solution to transfer power to a traditional network device with high power
demand directly without the need to install additional power outlets and electrical
cabling in the industrial environment.
which delivers the Ethernet digital data and PoE power from an 802.3bt PoE++
type-4 PSE (power source equipment) over an UTP cable. It comes with a
selectable 12V or 24V DC DIP switch, enabling to deliver a maximum of 70-
watt power output to a non-PoE powered Ethernet device. It supports passive
10/100/1000Mbps Ethernet connection and distance up to 100 meters. To fulfill
the growing industrial applications, the IPOE-173S is designed to work under the
operating temperature range from -40 to 75 degrees C. The IPOE-173S is an
ideal solution to transfer power to a traditional network device with high power
demand directly without the need to install additional power outlets and electrical
cabling in the industrial environment.
Specification
Specification IPOE-173S
