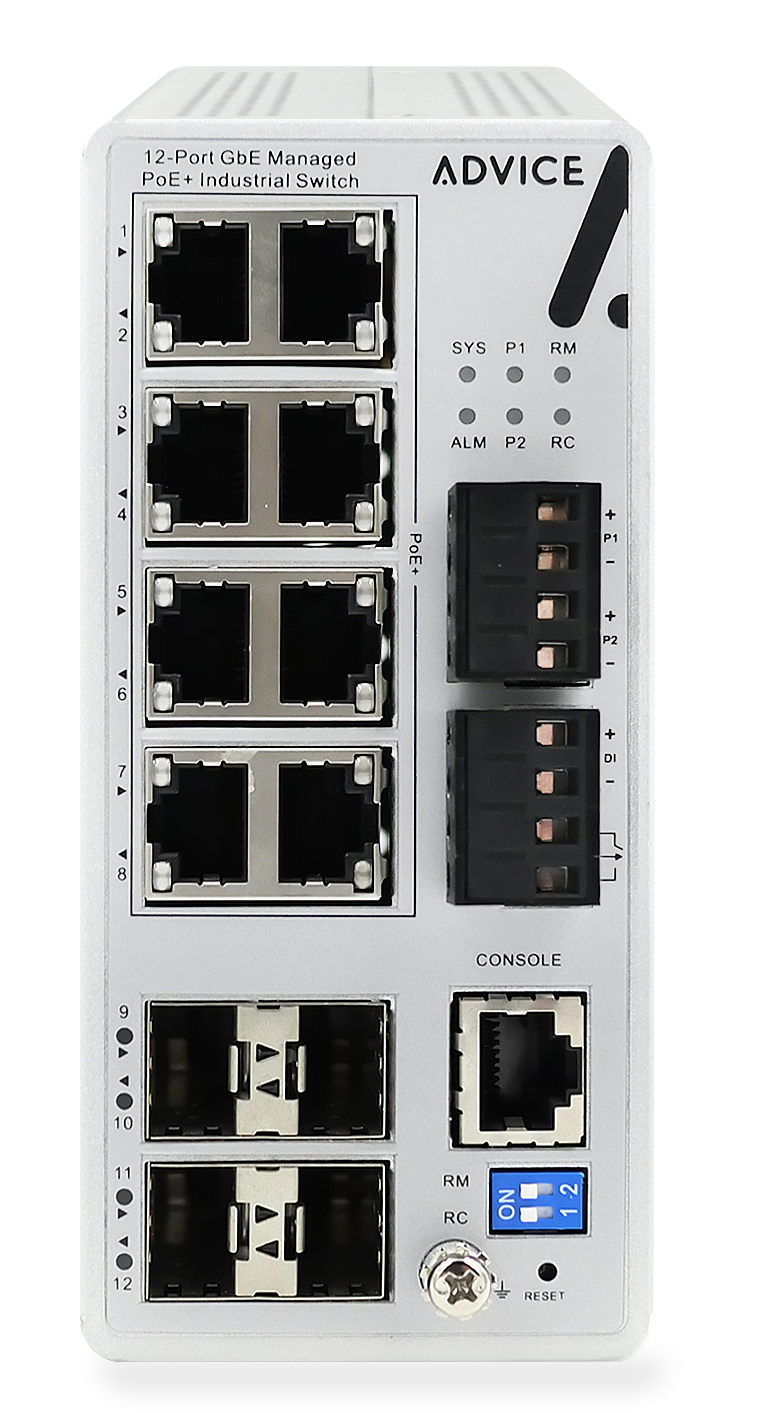

Industrial L2+ Managed GbE PoE+ Switch

CIS8P4F240 industrial L2+ managed GbE PoE+ switch is the next generation industrial grade
Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In
addition to the extensive management features, CIS8P4F240 also provides carrier Ethernet features
such as OAM/CFM/ERPS/EPS/PTPv2, of which make them suitable for industrial and carrier Ethernet
applications.

CIS8P4F240 delivers 8 (10M/100M/1G) RJ45 with 8 PoE+ (Support 802.3 at/af, and total up to
240W) ports, 4 GbE SFP ports and RJ45 console port. CIS8P4F240 provides high HW performance
and environment flexibility for industrial and carrier Ethernet applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-
use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. CIS8P4F240 is ideal to deliver management simplicity, better user experience, and
lowest total cost of ownership.


  • Rapid Ring (R-Ring)
  • Built in Device Management System (DMS)
  • iPush APP for real time alarm notification
  • ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  • ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  • IEEE 1588v2 PTP
  • IEEE 802.3ah OAM
  • IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
  • DHCP Server
  • IEEE 802.3az Energy Efficient Ethernet standard for green
  • Ethernet application
  • IEEE 802.3af/at Power over Ethernet
  • IPv4/IPv6 L3 static route
  • EtherNet/IP (by request)
  • PROFINET (by request)
