IFGS-1022HPT

מוצר קודם | מוצר הבא
תיאור מוצר

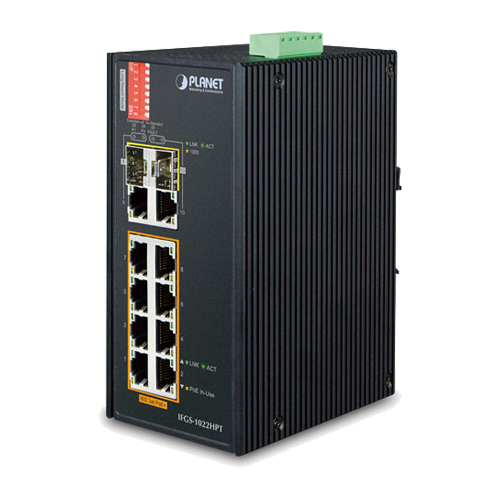

Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Ethernet Switch (-40~75 degrees C)

Physical Port
  • Eight 10/100BASE-TX Fast Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)
  • Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
  • Two 1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-9 and Port-10)
Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 240-watt PoE budget
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
Industrial Case and Installation
  • IP30 metal case
  • DIN rail and wall-mount design
  • 48~56V DC, redundant power with polarity reverse protect function
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
Switching
  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 16K MAC address table size
  • 10K jumbo frame
  • IEEE 802.1Q VLAN transparency
  • Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Specification
