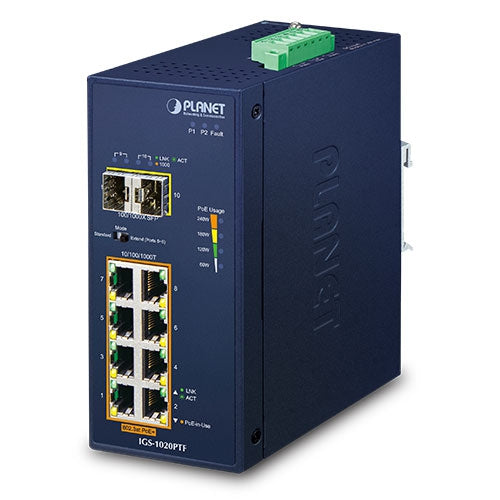

IGS-1020PTF

IGS-1020PTF Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP
Ethernet Switch (-40~75 degrees C)
Physical Port
  • Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with
    IEEE 802.3af/at PoE+ Injector (Ports 1 to 8)
  • Two 100/1000BASE-X SFP slots for SFP transceiver type
    auto detection (Ports 9 and 10)
Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-
    span PSE

  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 240-watt PoE budget
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
Industrial Case and Installation

  • IP30 metal case (IGS-1020PTF); IP30 aluminum case (IGS-
    1020PTF-12V)

  • DIN-rail and wall-mount designs
  • 48~56V DC (IGS-1020PTF)/12~56V (IGS-1020PTF-12V),
    redundant power with reverse polarity protection
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
Switching
  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps
    (full duplex), auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering
    and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back
    pressure for half duplex operation
  • 8K MAC address table size
  • 20Gbps switch fabric
  • 9K jumbo frame
  • Hardware-based DIP switch for “Standard” and “Extend”
    mode selection; the “Extend” mode features 30-watt PoE
    transmission distance of 250m at speed of 10Mbps
  • Automatic address learning and address aging
