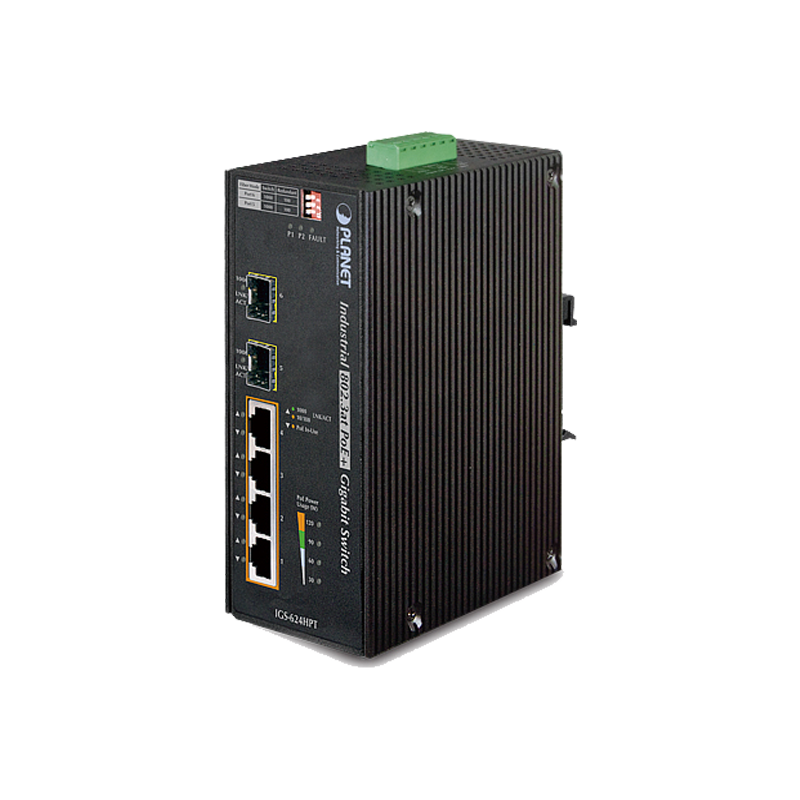

IGS-624HPT

מוצר קודם | מוצר הבא
תיאור מוצר
Industrial 4-Port 10/100/1000T 802.3at PoE+ w/ 2-Port 100/1000X SFP Ethernet Switch

Physical Port
  • 4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at PoE Injector
  • 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
  • Power over Ethernet
  • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSE
  • Up to 4 IEEE 802.3af / 802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port
  • Auto-detects EEE 802.3af/at equipment and protects devices from being damaged by incorrect installation
  • Remote power feeding up to 100m
Layer 2 Features
  • Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)
  • Automatic address learning and address aging
  • Industrial Case / Installation
  • IP30 aluminum metal case protection
  • Dual SFP Ports Auto Link Redundant Mode Support
  • DIN Rail and Wall Mount Design
  • 48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave power
  • Supports EFT protection 6000 VDC for power line
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Specification
