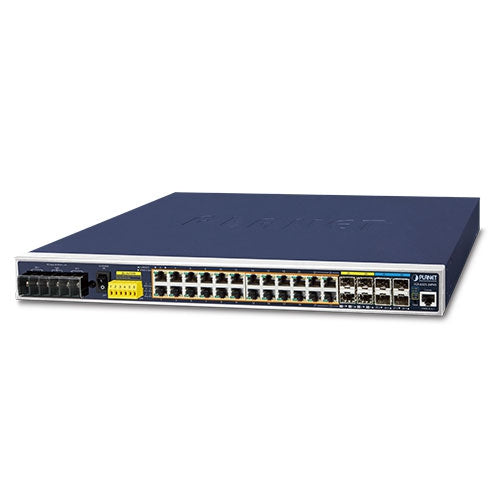

IGS-6325-24P4X

מוצר קודם | מוצר הבא
תיאור מוצר
Physical Port
  • 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to RS232 DB9 console interface for basic management and setup

Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Up to 24 IEEE 802.3af devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • 440-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • PoE management features
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE admin-mode control
– PoE port power feeding priority
– Per PoE port power limit
– PD classification detection
  • Intelligent PoE features
– Temperature threshold control
– PoE usage threshold control
– PD alive check
– PoE schedule

Industrial Protocol
  • Modbus TCP for real-time monitoring in the SCADA system
  • IEEE 1588v2 PTP (Precision Time Protocol)

Industrial Case and Installation
  • IP30 metal case
  • 19-inch rack-mountable design
  • Dual 48~56V DC, redundant power with reverse polarity protection
– Active-active redundant power failure protection
– Backup of catastrophic power failure on one supply
– Fault tolerance and resilience




Specification
