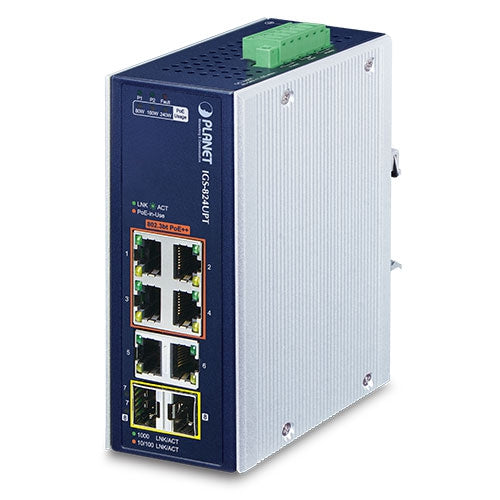

IGS-824UPT
IGS-824UPT Industrial 4-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
Interface
- 6 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
- Two SFP slots, supporting 1000BASE-X and 100BASE-FX
transceiver in dual modes
- Complies with IEEE 802.3bt Power over Ethernet Plus Plus
type 4 PSE - Backward compatible with IEEE 802.3at Power over
Ethernet Plus - Up to 4 ports of IEEE 802.3bt/at devices powered
- Up to 240-watt PoE budget
- Supports PoE power up to 95 watts for each PoE port
- Each port supports 48~54V DC power to PoE powered
device - Auto detects powered device (PD)
- Auto detects IEEE 802.3bt equipment and protects devices
from being damaged by incorrect installation - Circuit protection prevents power interference between
ports - Remote power feeding up to 100m
Industrial hardened design
- IP30 aluminum case
- DIN-rail and wall-mount designs
- 48~54V DC redundant power with reverse polarity
protection - Fault alarm for power input failed
- Supports 6KV DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- 4 real-time PoE power usage indicators
Layer 2 Switching
- Features Store-and-Forward mode with wire-speed filtering
and forwarding rates - IEEE 802.3x flow control for full duplex operation and back
pressure for half duplex operation - 4K MAC address table size
- 9K jumbo frame
- IEEE 802.1Q VLAN transparency
- Automatic address learning and address aging
- Supports CSMA/CD protocol
