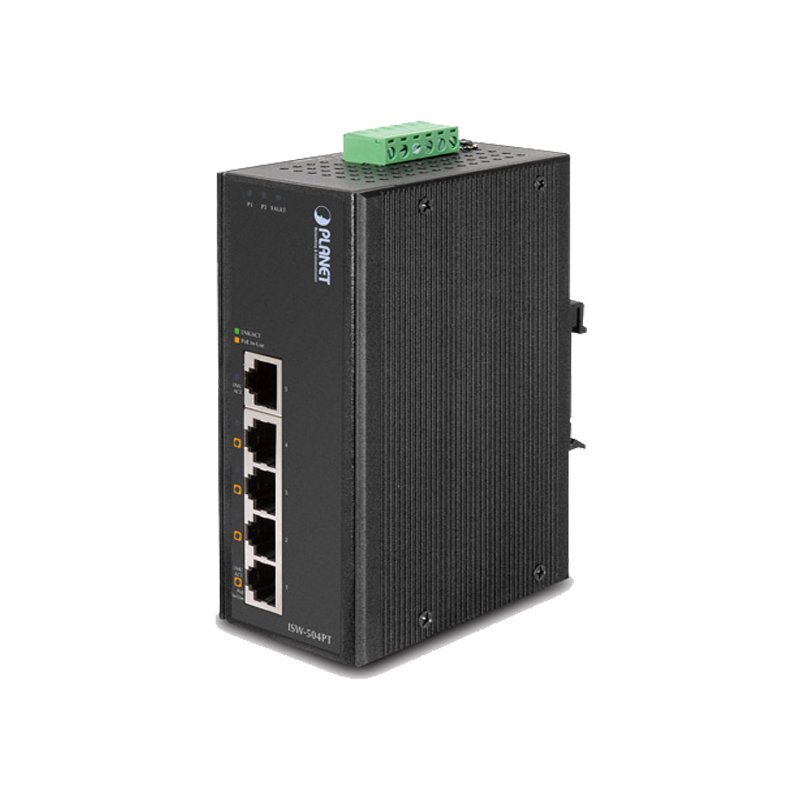

ISW-504PT

5-Port 10/100Mbps with 4-Port PoE Industrial Ethernet Switch - Wide Temperature

• 4 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45

copper ports (Port-1 to Port-4)

• 1 10/100BASE-TX Fast Ethernet non-PoE RJ45 copper port

• One terminal block for master and slave power input (Power

Range: 12 ~ 48V DC redundant power)

• Hardware DIP switch for Standard, VLAN and Extend mode

selection; the Extend mode features 25-watt PoE transmission

distance of 250m at speed of 10Mbps (Only for Port-1 to Port-4)

• Complies with IEEE 802.3at Power over Ethernet Plus, end-

span PSE

• Backward compatible with IEEE 802.3af Power over Ethernet

• Up to 4 ports of IEEE 802.3af/at devices powered

• Up to 120-watt PoE budget

• Supports PoE power up to 36 watts for each PoE port

• Each port supports 54V DC power to PoE powered device

• Auto detects powered device (PD)

• Circuit protection prevents power interference between ports

• Remote power feeding up to 100m in standard mode with 250m

in extend mode

• Hardware-based 10/100Mbps (half/full duplex), auto-negotiation

and auto MDI/MDI-X

• Features Store-and-Forward mode with wire-speed filtering and

forwarding rates

• IEEE 802.3x flow control for full duplex operation and back

pressure for half duplex operation

• 1K MAC address table size

• 1536 Bytes jumbo frame

• IEEE 802.1Q VLAN transparency

• Automatic address learning and address aging

• Supports CSMA/CD protocol

• IP40 metal case
• DIN-rail, wall-mount design or side wall-mount design
• 12~48V DC redundant power with polarity reverse protect
function
• Fault alarm for power input failed
• Supports 5KV DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
Data Sheet
• 4 real-time PoE power usage indicators
ISW-504PT/ISW-514PTF
