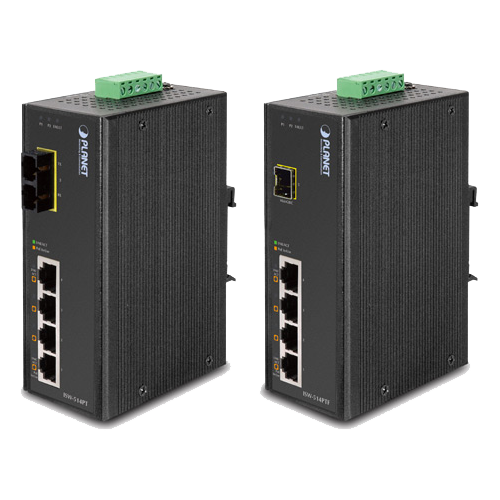

4-Port 10/100Mbps with PoE + 1-Port 100FX Industrial Ethernet Switch – Wide Temperature

Physical Port
  • 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector
  • 1-port 100Base-FX SFP interface
  • IEEE 802.3af PoE
  • Complies with IEEE 802.3af Power over Ethernet End-Span PSE
  • Up to 4 IEEE 802.3af devices powered
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
Layer 2 Features
  • Supports auto negotiation and 10/100Mbps half / full duplex and auto MDI/MDI-X
  • High performance Store and Forward architecture, runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Automatic address learning and address aging
  • Industrial Case / Installation
  • IP-30 aluminum metal case protection
  • DIN rail and wall mount design
  • 24 or 48V DC, redundant power with polarity reverse protect function
  • Supports EFT 6000V DC protection for power line
  • Supports Ethernet ESD 6000V DC protection
  • -40 to 75 degrees C operating temperature
