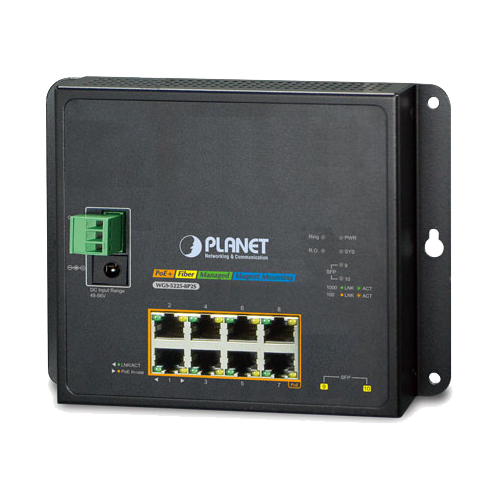

WGS-5225-8P2S

מוצר קודם | מוצר הבא
תיאור מוצר
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch

Physical Port
  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
  • 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Up to 8 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • PoE management features
  • - Total PoE power budget control
  • - Per port PoE function enable/disable
  • - PoE admin-mode control
  • - PoE port power feeding priority
  • - Per PoE port power limit
  • - PD classification detection
  • Intelligent PoE features
  • - Temperature threshold control
  • - PoE usage threshold control
  • - PD alive check
  • - PoE schedule
  • Industrial Case and Installation
  • Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
  • IP30 metal case
  • Supports -40 to 75 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual power input design
  • - 48V~56V DC wide power input with polarity reverse protect function
  • - 3-pin terminal block or DC jack connector
Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • -Broadcast/Multicast/Unicast
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
  • - Up to 255 VLANs groups, out of 4094 VLAN IDs
  • - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • - Private VLAN Edge (PVE)
  • - Protocol-based VLAN
  • - MAC-based VLAN
  • - Voice VLAN
  • Supports Spanning Tree Protocol
  • - IEEE 802.1D Spanning Tree Protocol (STP)
  • - IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • - IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • - BPDU Guard
  • Supports Link Aggregation
  • - 802.3ad Link Aggregation Control Protocol (LACP)
  • - Cisco ether-channel (static trunk)
  • - Maximum 2 trunk groups with 2 ports per trunk group
  • - Up to 2Gbps bandwidth (duplex mode)
  • Provides port mirror (1-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
Layer 3 IP Routing Features
  • Supports maximum 32 static routes and route summarization
Quality of Service
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • - IEEE 802.1p CoS
  • - IP TOS/DSCP/IP precedence
  • - IP TCP/UDP port number
  • - Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking
Multicast
  • Supports IGMP snooping v1, v2 and v3
  • Supports MLD snooping v1 and v2
  • Querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
  • MVR (Multicast VLAN Registration)
Security
  • IEEE 802.1x Port-based/MAC-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • TACACS+ login users access authentication
  • RADIUS/TACACS+ users access authentication
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder
Management
  • Switch Management Interfaces
  • - Telnet Command Line Interface
  • - Web switch management
  • - SNMP v1 and v2c switch management
  • - SSH/SSL and SNMP v3 secure access
  • Four RMON groups (history, statistics, alarms, and events)
  • IPv6 IP address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • Firmware upload/download via HTTP/TFTP
  • DHCP Relay and DHCP Option 82
  • User Privilege levels control
  • Network Time Protocol (NTP)
  • Link Layer Discovery Protocol (LLDP)
  • SFP-DDM (Digital Diagnostic Monitor)
  • Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
  • Reset button for system reboot or reset to factory default
  • PLANET Smart Discovery Utility for deployment management
