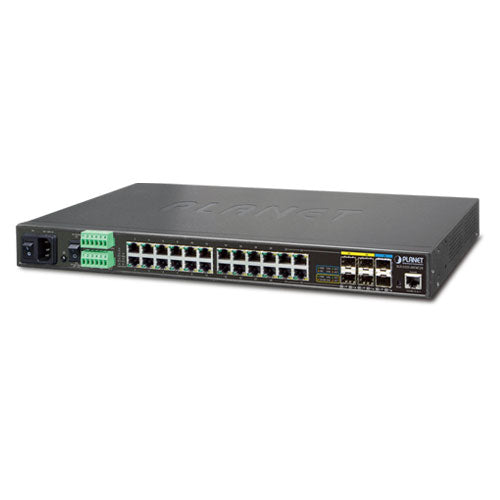

IGS-5225-20T4C2X

מוצר קודם | מוצר הבא
תיאור מוצר
Industrial L2+ 20-Port 10/100/1000T + 4-Port TP/SFP Combo + 2-Port 10G SFP+ Managed Ethernet Switch (-40~75 degrees C)

Physical Port
  • 24-port 10/100/1000BASE-T RJ45 copper
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to RS232 DB9 console interface for basic management and setup
Hardware Conformance
  • One 100 to 240V AC or dual 36 to 60V DC power input, redundant power with polarity reverse protect function
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
  • 19-inch rack-mountable design
  • IP30 metal case protection
  • Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
  • 40 to 75 degrees C operating temperature
  • Digital Input & Digital Output
  • 2 Digital Input (DI)
  • 2 Digital Output (DO)
  • Integrates sensors into auto alarm system
  • Transfers alarm to IP network via email and SNMP trap
Layer 3 IP Routing Features
  • Supports maximum 32 static routes and route summarization
Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm control support
  • - Broadcast/Multicast/Unknown unicast
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 255 VLANs groups, out of 4095 VLAN IDs
  • Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • Private VLAN Edge (PVE)
  • Protocol-based VLAN
  • MAC-based VLAN
  • IP subnet-based VLAN
  • Voice VLAN
  • Supports Spanning Tree Protocol
  • STP, IEEE 802.1D Spanning Tree Protocol
  • RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
  • MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
  • BPDU Guard
  • Supports Link Aggregation
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 14 trunk groups, with 8 ports for each trunk
  • Up to 16Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring monitors the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports E.R.P.S. (Ethernet Ring Protection Switching)
  • IEEE 1588 and Synchronous Ethernet network timing

מפרטים טכניים

Specification IGS-5225-20T4C2X EN
