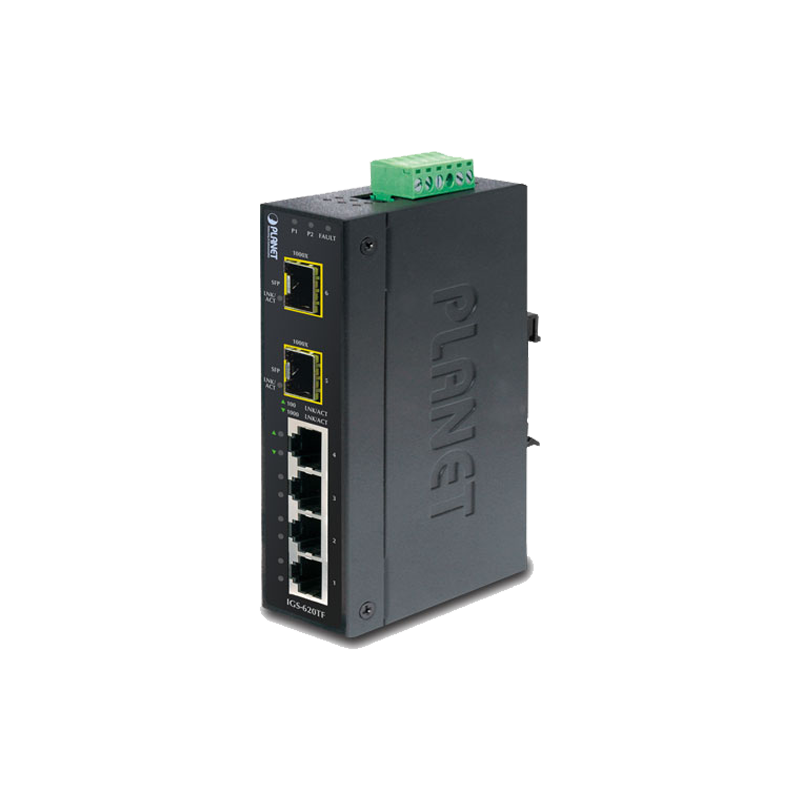

IGS-620TF

תיאור מוצר
Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch

Physical Port
  • 4-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
  • 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
  • Fiber Port Redundancy
  • Link status auto-detect and redundant on Dual ports with the same connector type
  • Only Primary-Port is active at a time, the Backup-Port is blocked
  • When Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically.
  • Once the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-Port.
Layer 2 Features
  • Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
  • High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
  • 9K Jumbo Frame Size support
  • Backplane (Switching Fabric): 12Gbps
  • Integrated address look-up engine, support 1K absolute MAC addresses
  • Automatic address learning and address aging
  • CSMA/CD Protocol
  • Industrial Case / Installation
  • Slim IP30 metal case protection
  • DIN Rail and Wall Mount Design
Redundant Power Design
  • - 12 to 48V DC, redundant power with polarity reverse protect function
  • - AC 24V power adapter acceptable
  • Supports EFT protection 6000 VDC for power line
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
