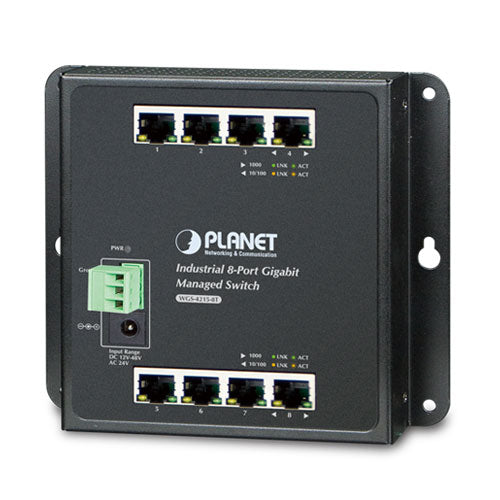

WGS-4215-8T
Industrial 8-Port 10/100/1000T Wall-mount Managed Switch (-40~75 degrees C)
- Physical Port8-port 10/100/1000BASE-T Gigabit RJ45 copper
- Industrial Case / Installation
- Compact size, wall-mounted, magnetic wall mount and DIN-rail design
- IP30 metal case protection
- Supports -40 to 75 degrees C operating temperature
- Supports ESD 8KV DC Ethernet protection
- Redundant power design
- - 12V~48V DC/24V AC wide power input
- Switching
- Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- 10K jumbo frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
- Layer 2 Features
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN
- Private VLAN (Protected port)
- Management VLAN
- GVRP
- Supports Spanning Tree Protocol
- - STP (Spanning Tree Protocol)
Specification
