WGS-4215-8T2S

  • WGS-4215-8T2S - ADVICE.CO.IL

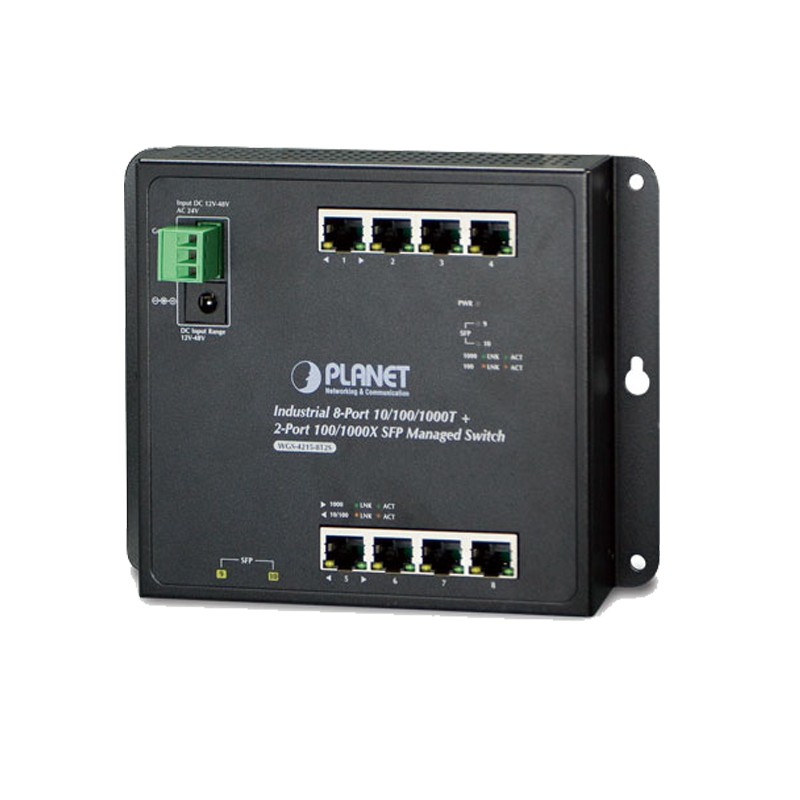

Industrial 8-Port 10/100/1000T + 2-Port 100/1000X SFP Wall-mount Managed Switch (-40~75 degrees C)

Physical Port
  • 8-port 10/100/1000BASE-T Gigabit RJ45 copper
  • 2 100/1000BASE-X mini-GBIC/SFP slots
Industrial Case / Installation
  • Compact size, wall-mounted, magnetic wall mount and DIN-rail design
  • IP30 metal case protection
  • Supports -40 to 75 degrees C operating temperature
  • Supports EFT protection of 6KV DC for power line
  • Supports ESD 6KV DC Ethernet protection
  • Redundant power design
  • - 12V~48V DC/24V AC terminal block/12V~48V DC jack power input
  • - 12V~48V DC input range for booting with polarity reverse protect function
Switching
  • Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 9K iumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
Layer 2 Features
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
  • - Provides bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  • - Protocol VLAN
  • - Voice VLAN
  • - Private VLAN (Protected port)
  • - Management VLAN
  • - GVRP
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)
  • - RSTP (Rapid Spanning Tree Protocol)
  • - MSTP (Multiple Spanning Tree Protocol)
  • - STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • - Cisco ether-channel (static trunk)
  • - Maximum 4 trunk groups, up to 8 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
  • - IEEE 802.1p CoS
  • - TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
Security
  • Storm Control support
  • - Broadcast/Unknown unicast/Unknown multicast
  • Authentication
  • - IEEE 802.1X port-based network access authentication
  • - Built-in RADIUS client to co-operate with the RADIUS servers
  • - DHCP Option 82
  • - RADIUS/TACACS+ authentication
  • Access Control List
  • - IPv4/IPv6 IP-based ACL
  • - IPv4/IPv6 IP-based ACE
  • - MAC-based ACL
  • - MAC-based ACE
  • MAC Security
  • - Static MAC
  • - MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH / SSL
Management
  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
  • - IPv4 / IPv6 Web switch management
  • - Telnet Command Line Interface
  • - SNMP v1, v2c and v3
  • - SSH and SSL secure access
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Static and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP / TFTP
  • - Configuration upload/download through HTTP / TFTP
  • - Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Cable diagnostics
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • SNMP trap for interface Link Up and Link Down notification
  • Event message logging to remote Syslog server
  • Four RMON groups (history, statistics, alarms and events)
  • PLANET Smart Discovery Utility


Specification
