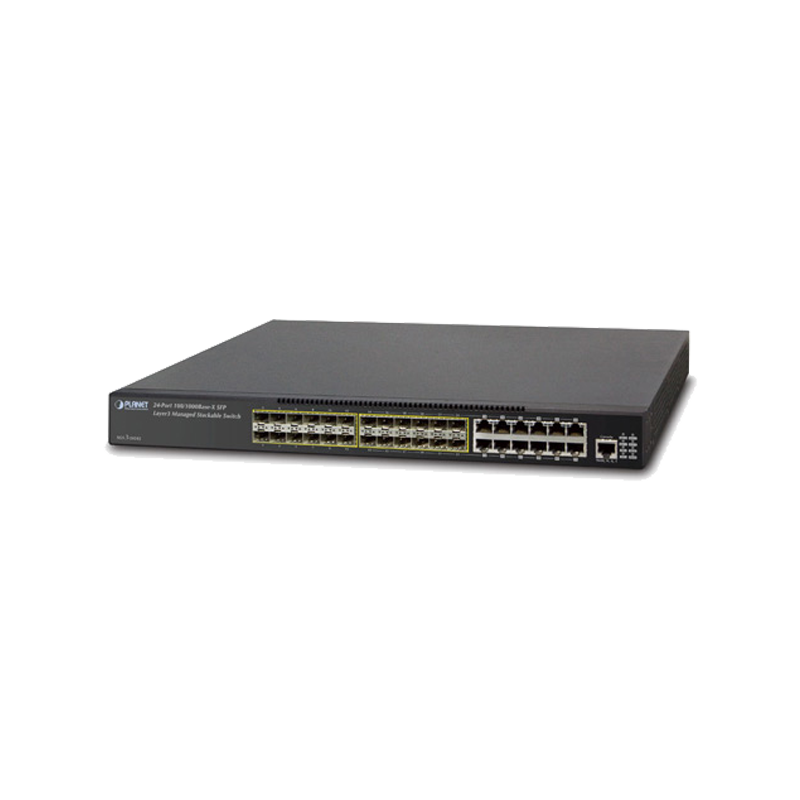

XGS3-24242

מוצר הבא
תיאור מוצר
24-Port 100/1000X SFP with 12-Port Shared 10/100/1000T and 4 Optional 10G slots Layer 3 Managed Stackable Switch (AC+DC)

Physical Port
  • 24 100/1000Base-X mini-GBIC/SFP slots
  • 12-Port 10/100/1000Base-T RJ-45 copper, shared with Port-13 to Port-24
  • 2 10G module slots, support up to 4 10G SFP+ transceivers
  • 1 RJ-45 serial console interface for switch basic management and setup
IP Stacking
  • Connects with stack member via both Gigabit TP/SFP interface or 10G stack slots
  • Single IP address management, supports up to 24 units stacked together
IP Routing Features
  • IP Routing protocol supports RIP v1/v2, OSPF v2/v3, BGP4/4+
  • Routing interface provides Per-VLAN routing mode
  • VRRP v1/v3 protocol for redundant routing deployment
  • Supports route redistribution
Multicast Routing Features
  • Supports PIM-DM(Protocol Independent Multicast - Dense Mode) and PIM-SM (Protocol Independent Multicast - Sparse Mode)
  • Supports DVMRP (Distance Vector Multicast Routing Protocol)
  • Supports IGMP v1/v2/v3 and MLD v1/v2
Layer 2 Features
  • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standards
  • Supports auto-negotiation and half duplex / full duplex modes for all 10Base-T / 100Base-TX and 1000Base-T ports
  • Auto-MDI / MDI-X detection for each RJ-45 port
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture, broadcast storm control and runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • 16K MAC address table, automatic source address learning and ageing
  • Supports VLAN
  • - IEEE 802.1Q Tagged VLAN
  • - Up to 4K VLANs groups, out of 4096 VLAN IDs
  • - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • - GVRP protocol for VLAN Management
  • - Private VLAN Edge (PVE)
  • - Voice VLAN
  • - MAC-based VLAN
  • - Protocol-based VLAN
  • Supports Spanning Tree Protocol
  • - STP, IEEE 802.1D (Spanning Tree Protocol)
  • - RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
  • - MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
  • Supports Link Aggregation
  • - 802.3ad Link Aggregation Control Protocol (LACP)
  • - Cisco ether-channel (Static Trunk)
  • - Maximum 16 trunk groups, up to 8 ports per trunk group
  • - Up to 16Gbps bandwidth (duplex mode)
  • Provides Port Mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
Quality of Service
  • 8 priority queues on all switch ports
  • Supports for strict priority and Weighted Round Robin (WRR) CoS policies
  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • Traffic-policing policies based on application
Multicast
  • Supports IGMP Snooping v1, v2 and v3
  • Support MLD Snooping v1 and v2
  • Querier mode support
  • MVR (Multicast VLAN Registration)
Security
  • IEEE 802.1x Port-based network access authentication
  • MAC-based network access authentication
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
  • Static MAC
  • MAC address binding & filter
  • ARP inspection to defense ARP-DOS attack and address clone
  • Supports URPF to avoid IP address clone
Management
  • Switch Management Interfaces
  • - Console / Telnet Command Line Interface
  • - Web-based switch management
  • - SNMP v1, v2c, and v3 security set and get requests
  • - SSH (Secure Shell) / SSL secure access
  • Four groups (history, statistics, alarms, and events) of embedded remote monitoring (RMON) agents for network monitoring and traffic analysis
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • IPv6 IP Address / NTP / DNS management
  • DHCP Relay
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) Protocol
  • BOOTP and DHCP for IP address assignment
  • Firmware upload/download via HTTP / TFTP
  • Redundant Power System
  • 100~240V AC / -48V DC Dual power redundant
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply

Specification
