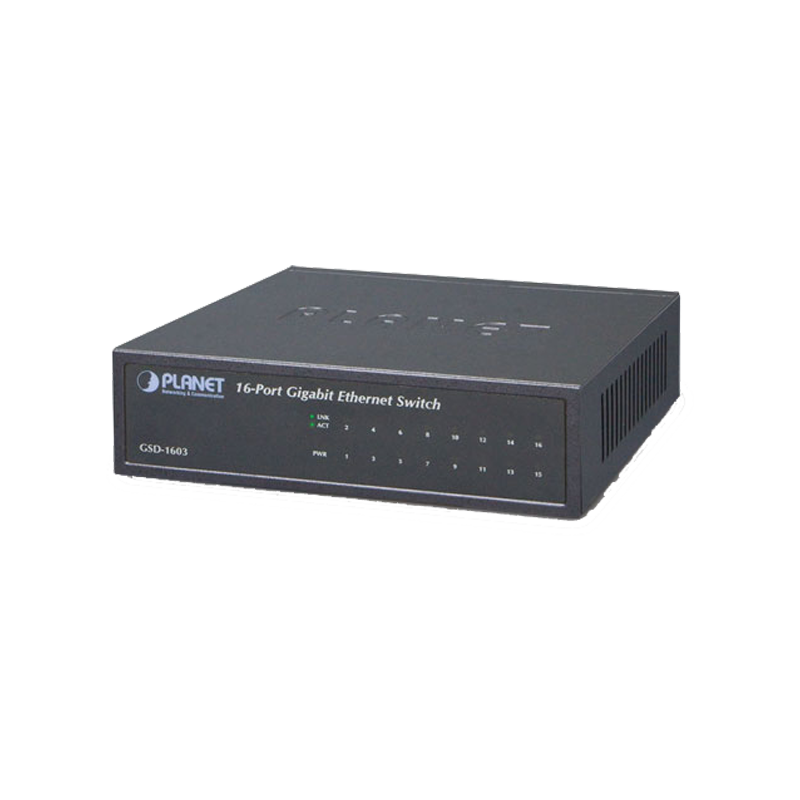

GSD-1603

מוצר קודם | מוצר הבא
תיאור מוצר
מתג 16 מבואות במהירות 10/100/1000 ללא ניהול, שולחני, מתכתי, ספק חיצוני

Physical Port
  • 16 10/100/1000BASE-T Gigabit Ethernet ports
  • Supports auto MDI/MDI-X function

Layer 2 Features
  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrated address look-up engine, supporting 8K absolute MAC addresses
  • 9K jumbo packet support
  • IEEE 802.1Q VLAN packet transparent support
  • IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
  • Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Hardware Features
  • Made of metal, desktop size and wall-mount design
  • LED indicators for system power, per port Link/Act
  • 12V DC, 1A external power adapter
  • FCC, CE Class B compliant


Specification
