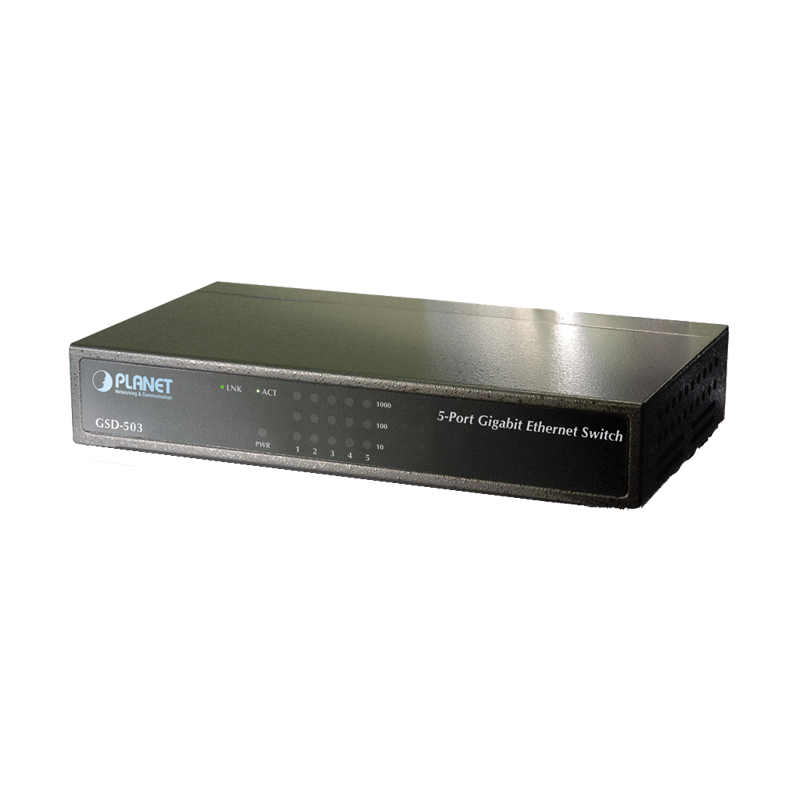

GSD-503

תיאור מוצר
מתג 5 מבואות במהירות 10/100/1000 ללא ניהול, שולחני, מתכתי

RJ-45 Interface
  • 5-Port 10/100/1000Mbps Gigabit Ethernet
  • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
  • Supports auto MDI/MDI-X function
Switching
  • Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrated address look-up engine, supporting 2K absolute MAC addresses
  • 9K Jumbo packet size
  • Power saving ability for Green networking
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
Hardware
  • Made of metal, desktop size and wall-mount design
  • LED indicators for system power, per port 1000 & Link / Act
  • 5V DC, 1A external power adapter
  • FCC, CE Class B compliant
