GT-1205A

מוצר קודם | מוצר הבא
תיאור מוצר

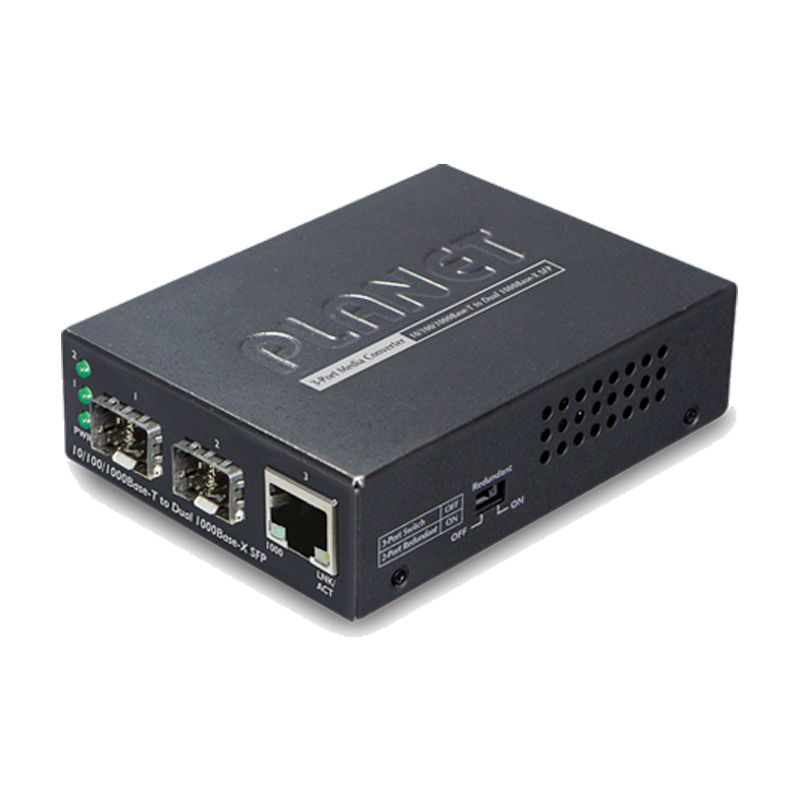

10/100/1000Base-T to Dual 1000Base-X SFP Media Converter

Description

Standard
  • Complies with IEEE 802.3 10Base-T
  • Complies with IEEE 802.3u 100Base-TX
  • Complies with IEEE 802.3ab 1000Base-T
  • Complies with IEEE 802.3z 1000Base-SX / LX
  • IEEE 802.3x Full-duplex Flow-Control, Back-Pressure in Half-duplex eliminate packets loss
Interface
  • Dual 1000Base-SX / LX SFP Fiber-Optic Slots
  • One 10/100/1000Base-T Copper, auto MDI/MDIX function
  • Auto-Negotiation for 10/100/1000Base-T; Half-duplex or Full-duplex for 10Mbps and 100Mbps, Full-duplex for 1000Mbps
  • Supports maximum frame size up to 1522 bytes
  • IEEE 802.1Q Tag VLAN Transparent, Multicast pass-through
Redundancy
  • Link status auto-detecting and redundant on Dual ports with the same connector type
  • Allows only the Primary-Port or the Backup-Port active at a time
  • - When the Primary-Port link fail occurs, the traffic swaps to Backup-Port automatically
  • - Once the Primary-Port link regains, the traffic swaps from the Backup-Port to the Primary-Port
  • Hardware fiber port redundant
Mechanical
  • External 5V / 2A DC power supply
  • LED indicators for easy network diagnose
  • DIP switch for 3-port operation with Gigabit switch mode or redundant mode
  • Compact in size, easy installation
  • Co-works with PLANET 10”/19” Media Converter Chassis (MC-700 / MC-1500 / MC-1500R / MC-1500R48)
  • Wall mounting and DIN-Rail installation supported

Specification
