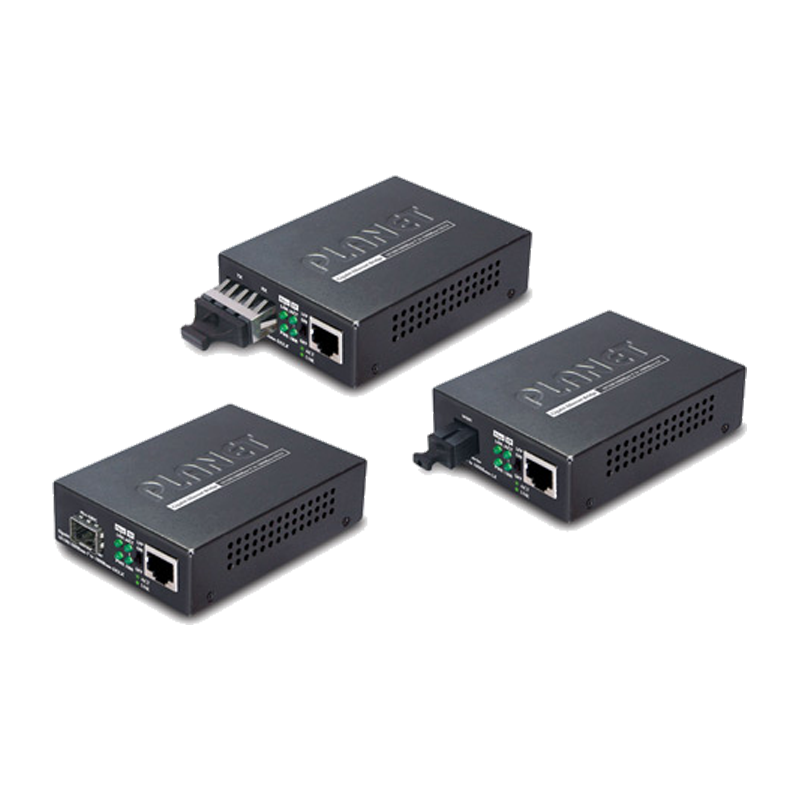

GT-802/ GT-802S/ GT-805A/ GT-806A15/ GT-806B15

מוצר קודם | מוצר הבא
תיאור מוצר
10/100/1000Base-T to 1000Base-SX/LX Gigabit Media Converter

Description
  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX.
  • TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X.
  • 1000Base-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m (GT-802).
  • 1000Base-LX: 9/125μm single-mode cable provides long distance for 10km (GT-802S).
  • 1000Base-LX WDM interface for up to 15km (single-mode fiber 9μm/125μm) on GT-806A15/B15.
  • 1000Base-LX WDM interface for up to 60km (single-mode fiber 9μm/125μm) on GT-806A60/B60.
  • 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters.
  • Layer 2 key Feature
  • 　IEEE 802.3x full-duplex flow-control and back-pressure in half-duplex eliminate the loss of packets
  • 　Supports auto MDI/MDI-X function
  • 　Store-and-Forward mechanism
  • 　Non-blocking full wire-speed forwarding rate
  • Media conversion between 10/100/1000Base-T and 1000Base-SX/LX.
  • Fiber media allows:
  • 　 Multi-mode fiber using SC/LC/WDM connector;
  • 　 Single-mode fiber using SC/LC/WDM connector
  • Compact size for working with PLANET MC family media chassis (MC-700 / MC-1500 / MC-1500R / MC-1500R48)
  • Wall-mountable design
  • LED indicators for easy network diagnostics
  • Provides DIP switch for LFP function (Disable / Enable) setting
  • OAM TS-1000 supported
  • 9K Jumbo Frame Supported
  • Choice of fiber-connector from SC, LC and WDM, multi-mode / single-mode fiber for 1000Base SFP interface
  • Compact in size, easy installation



Specification
