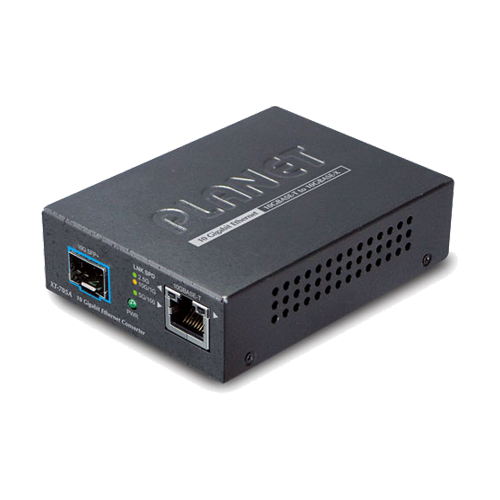

XT-705A
10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Physical Port
- One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
- One 10GBASE-X SFP+ slot interface
Layer 2 Features
- IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
- Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- 16K jumbo frame size support
- Automatic address learning and address aging
Case and Installation
- External 5V DC, 2A power supply
- DIN-rail and wall-mount design
- Supports 6000 VDC Ethernet ESD protection
- 100 meters over Cat 6A / Cat7 at 10Gbps
- 0 to 50 degrees C operating temperature
- Co-works with PLANET’s 10”/19” Media Converter Chassis
- (MC-700/MC-1500/MC-1500R/MC-1500R48)
- Plug and Play installation
Specification
