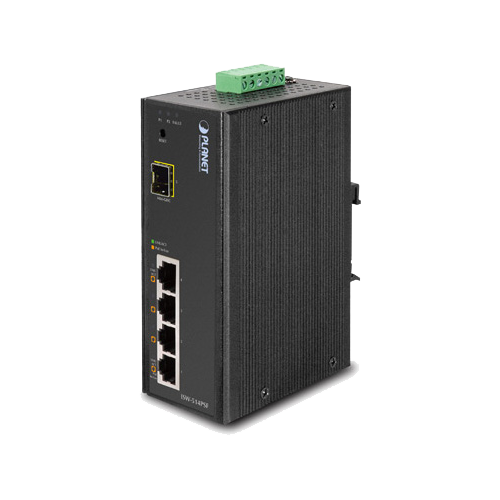

ISW-514PSF מתג POE תעשייתי

תיאור מוצר

4-Port 10/100Mbps with PoE + 1-Port 100FX Industrial Web Smart Switch

Physical Port
  • 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector
  • 1-port 100Base-FX SFP interface
  • IEEE 802.3af PoE
  • Complies with IEEE 802.3af Power over Ethernet End-Span PSE
  • Up to 4 IEEE 802.3af devices powered
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
PoE Management
  • Total PoE Power Budget Control
  • Enable / Disable PoE Function on each port
  • PoE port Power Feeding priority
  • Power limit on PoE port
  • PD Classification Detection
Web Management
  • Web interface for remote management
  • Firmware upgrade through Web interface
  • PLANET Smart Discovery utility automatically finds PLANET devices on the network
  • SNMP Trap for alarm notification of events
  • VLAN and QoS configuration
Layer 2 Features
  • Supports auto-negotiation and 10/100Mbps half / full duplex and auto MDI/MDI-X
  • High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Automatic address learning and address aging
  • Integrated address look-up engine, supports 1K absolute MAC addresses
  • CSMA/CD Protocol
Industrial Case / Installation
  • IP30 aluminum metal case protection
  • DIN rail and wall mount design
  • Redundant Power design
  • 24 or 48V DC, redundant power with polarity reverse protect function
  • Supports EFT protection 6000V DC for protection power line
  • Supports Ethernet ESD 6000V DC protection
  • -10 to 60 degrees C operation temperature
