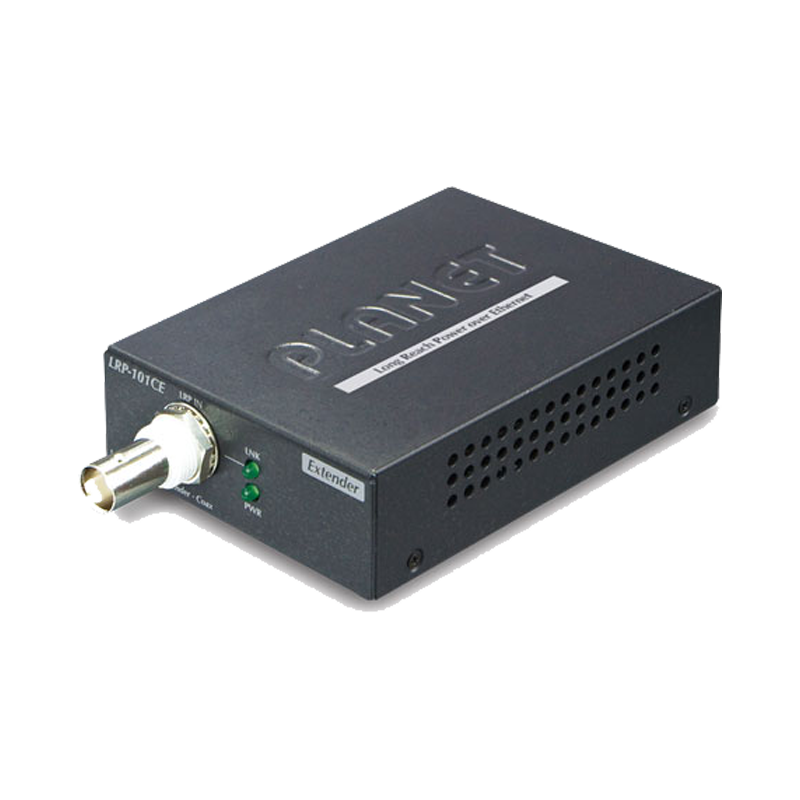

LRP-101CE
1-Port Long Reach PoE over Coaxial Extender
Physical Port
- 1 x 10/100BASE-TX RJ45 copper interface, supporting IEEE 802.3af/at PoE PSE
- 1 x BNC connector, supporting 44~56V DC power input and Ethernet data transmission
Power over Ethernet
- Supports Power over Ethernet PSE, PoE Injector
- Eliminates power cabling with PoE over Coaxial
- Power and Ethernet data transmission over coaxial up to 1km
- Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet PSE on RJ45 port
- Supports PoE power up to 25 watts (depending on Power Source and Coaxial Distance)
- Auto detects remote powered device (PD)
Industrial Case / Installation
- Supports extensive LED indicators for network diagnostics
- Metal case protection
- Compact size, DIN-rail and wall-mount design
- Power Input: PoC (Power over Coaxial) power input
- Supports 4KV DC Ethernet ESD protection
- -20 to 70 degrees C operating temperature
Specification
