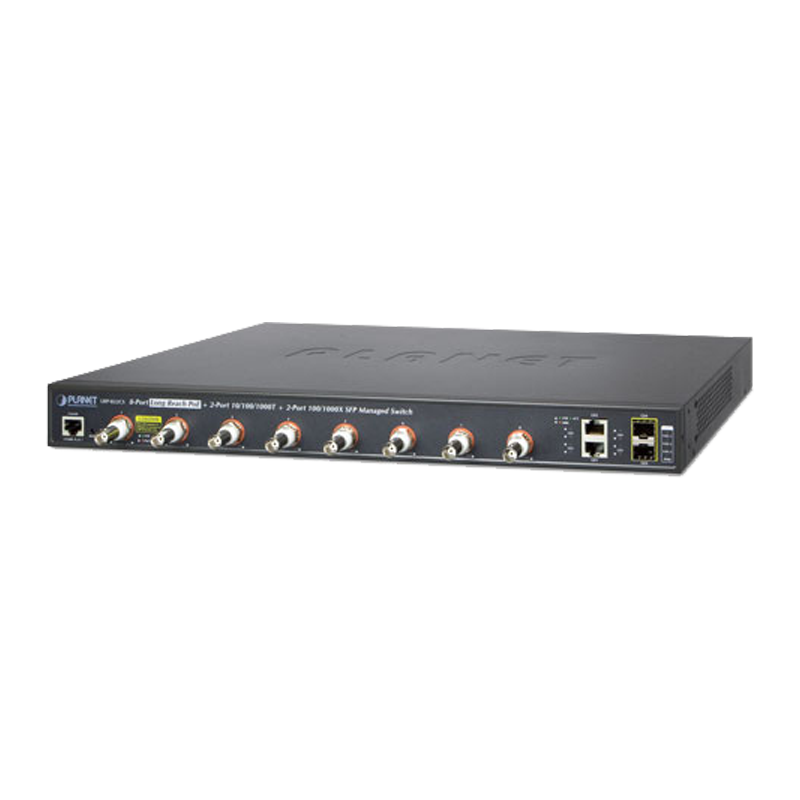

LRP-822CS

תיאור מוצר
8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch

Physical Port
  • 8 100Mbps BNC female ports with Long Reach PoE Injector function
  • 2 10/100/1000BASE-T Gigabit RJ45 copper ports
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • RJ45 console interface for switch basic management and setup
  • Long Reach Power over Ethernet
  • Supports PoE power up to 36 watts for each PoE port
  • Remote power feeding up to 1 kilometer with 5C2V/RG6 75Ω coaxial cable
  • Long Reach PoE Management
  • - Total Long Reach PoE power budget control
  • - Per port Long Reach PoE function enable/disable
  • - Long Reach PoE port power feeding priority
  • - Per Long Reach PoE port power limitation
  • - Long Reach PD alive check
  • - Long Reach PoE schedule
Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
  • - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • - Protocol VLAN
  • - Voice VLAN
  • - Private VLAN
  • - Management VLAN
  • - GVRP
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)
  • - RSTP (Rapid Spanning Tree Protocol)
  • - MSTP (Multiple Spanning Tree Protocol)
  • - STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • - Cisco ether-channel (static trunk)
  • - Maximum 4 trunk groups, up to 4 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
Quality of Service
  • Ingress / Egress rate limit per port bandwidth control
  • Storm control support
  • - Broadcast / Unknown unicast / Unknown multicast
  • Traffic classification
  • - IEEE 802.1p CoS
  • - ToS / DSCP / IP Precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
  • Supports IGMP snooping v2 and v3
  • Supports MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
Security
  • Authentication
  • - IEEE 802.1X Port-based network access authentication
  • - Built-in RADIUS client to co-operate with the RADIUS servers
  • RADIUS / TACACS+ login user access authentication
  • Access Control List
  • - IPv4 / IPv6 IP-based ACL
  • - MAC-based ACL
  • MAC Security
  • - Static MAC
  • - MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter untrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH / SSL
Management
  • IPv4 and IPv6 dual stack management
  • Switch management interface
  • - Web switch management
  • - Telnet command line interface
  • - SNMP v1, v2c and v3
  • - SSH / SSL secure access
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System maintenance
  • - Firmware upload/download via HTTP / TFTP
  • - Configuration upload/download through Web interface
  • - Dual images
  • - Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Cable diagnostics
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • SNMP trap for interface linkup and linkdown notification
  • Event message logging to remote Syslog server
  • Four RMON groups (history, statistics, alarms and events)
  • PLANET Smart Discovery utility
  • Smart fan with speed control


Specification
