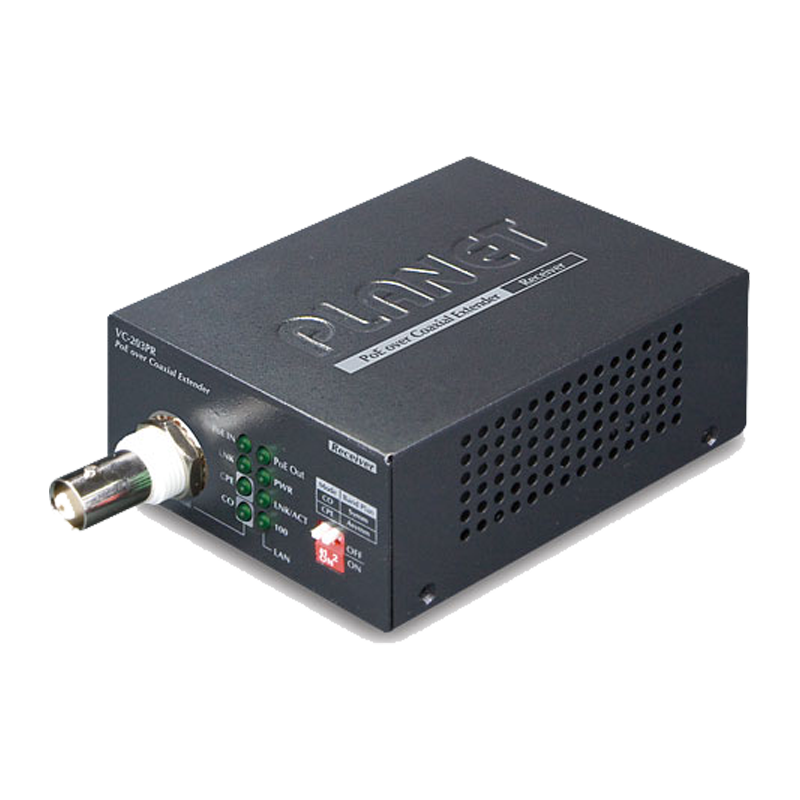

VC-203PR

תיאור מוצר
PoE over Coaxial Extender – Receiver

Physical Port
  • 1 x 10/100Base-TX RJ-45 copper interface (802.3at/af PoE Out)
  • 1 x BNC connector (Power and data receiver)
  • 1 x 2 Pin Terminal Block for 12/24V DC output
Power over Ethernet
  • Supports Power over Ethernet PD, PoE Injector and PoE Splitter
  • Eliminates power cabling with PoE over Coaxial
  • Ethernet over coaxial up to 1km with 5C2V/RG6 75Ωcable
  • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet on RJ-45 port
  • Supports PoE Power up to 30.8 watts (Vary on Power Source and Coaxial Distance)
  • Auto detects remote powered device (PD)
  • Supports adjustable two different output voltage options (12V / 24V) to fit various non-PoE devices
Layer 2 Features
  • Supports auto-negotiation and 10/100Mbps half / full duplex
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • VDSL2 Features
  • One box design, Master / Slave selectable via DIP Switch
  • Defines Asymmetric (Band Plan 998) and Symmetric band plans for the transmission of Upstream and Downstream signals
Industrial Case / Installation
  • Supports extensive LED indicators for network diagnostics
  • IP30 metal case protection
  • Compact size, DIN rail and wall mount design
  • Power Input: External DC or PoC (Power over Coaxial) power input
  • Supports EFT 2000V DC protection for power line
  • Supports ESD 2000V DC Ethernet protection
  • -40 to 75 degrees C operating temperature
