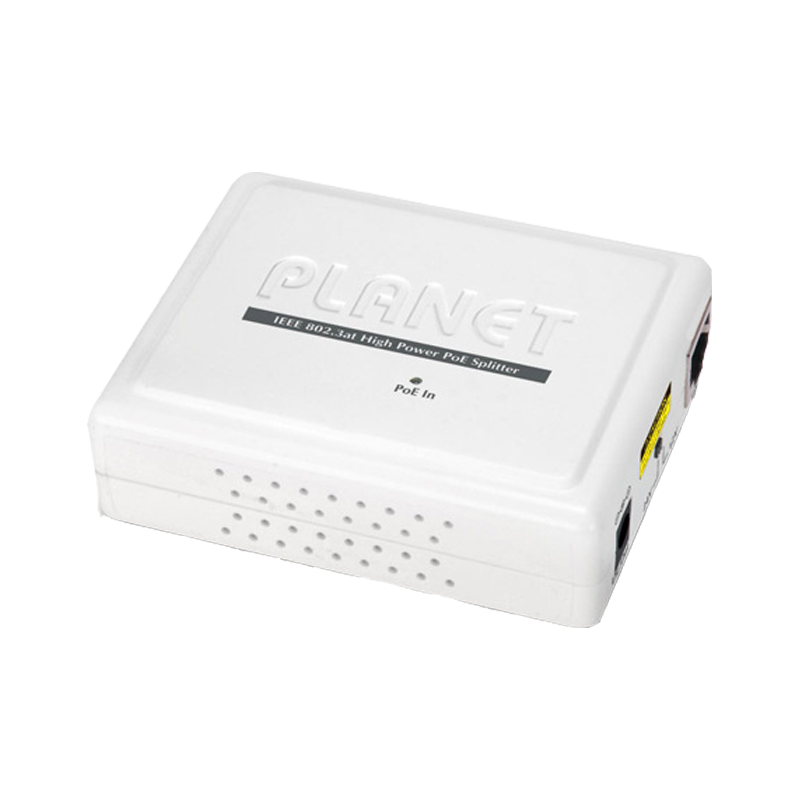

POE-162S
IEEE 802.3at Gigabit High Power over Ethernet Splitter
Interface
- 2-Port RJ-45 interfaces
- –1-Port PoE Power+ Data input
- –1-Port Data output
- 1 DC output plug connector
- PoE
- Complies with IEEE 802.3at Power over Ethernet PD
- Splits the 52 ~ 56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
- Up to 1 non-IEEE 802.3at device can be powered
- Auto-detects of PoE IEEE 802.3at equipment and protects devices from being damaged by incorrect installation
- Adjustable two different output voltage options (12V / 2A, 24V / 1A) to fit various devices
- Distance up to 100 meters
Hardware
- Plastic case
- 12V / 24V DIP switch
- LED indicators power input indication
- Standard Compliance
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at Power over Ethernet standard
- FCC Part 15 Class A, CE
Specification
