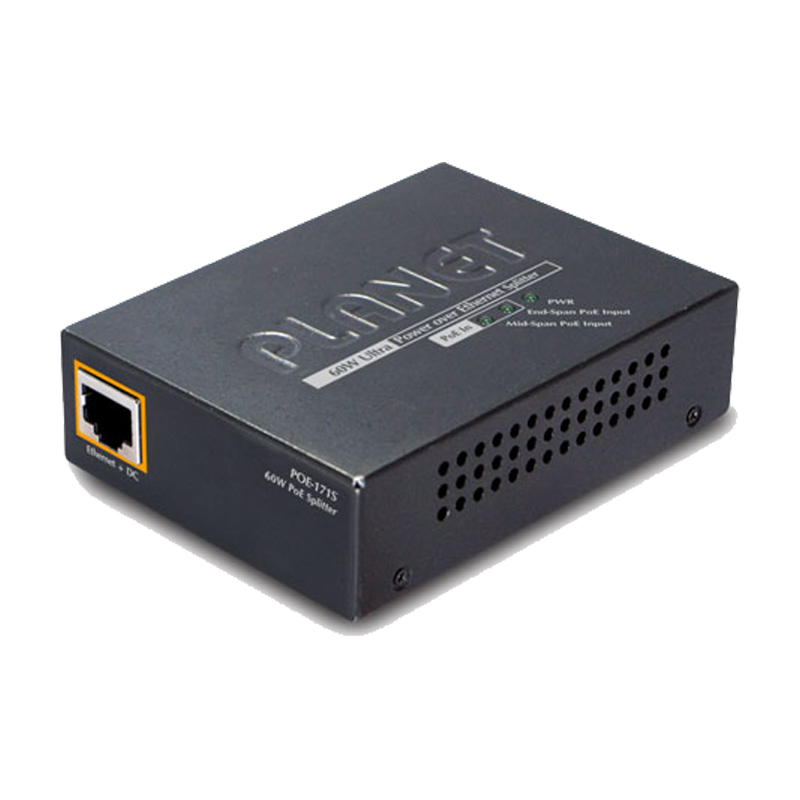

POE-171S

תיאור מוצר
IEEE 802.3at Gigabit High Power over Ethernet Splitter

Interface
  • 2-Port RJ-45 interfaces
  • - 1-Port Data + Power input
  • - 1-Port Data output
  • 1-Port DC output power socket
  • 1 DC 12V/19V/24V DIP switch
Power over Ethernet
  • Ultra Power over Ethernet End-Span / Mid-Span PSE
  • IEEE 802.3at/af PoE standard compliant
  • Compatible with All IEEE 802.3at/af Powered Devices
  • Supports 56VDC, 50pwatt PoE power output
  • Splits the 56V DC power over RJ-45 Ethernet cable into DC 12V/19V/24V output
  • Remote power feeding up to 100 meters
Hardware
  • Metal case
  • All-in-one compact size design
  • LED indicators for Power LED and POE input
  • Three-mode DC output DIP switch for 12V/19V/24V
  • Standard Compliance
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3at High Power over Ethernet
  • IEEE 802.3af Power over Ethernet
  • FCC Part 15 Class A, CE


Specification
