FGSD-1011HP

מוצר קודם | מוצר הבא
תיאור מוצר

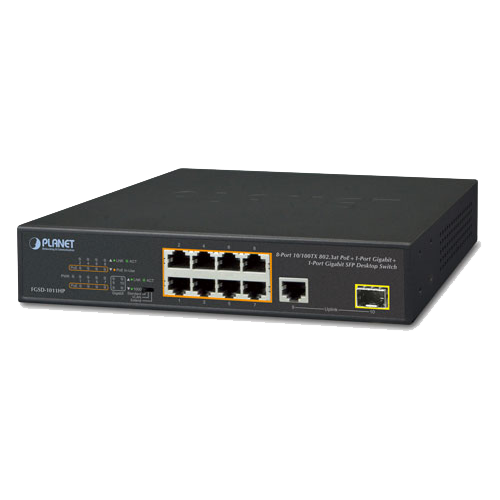

8-Port 10/100TX 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Desktop Switch (120 watts)

Physical Port
  • 8 10/100Mbps Fast Ethernet ports
  • 1 10/100/1000BASE-T Gigabit Ethernet port
  • 1 1000BASE-X mini-GBIC SFP interface
  • Power over Ethernet
  • Complies with IEEE 802.3af/at Power over Ethernet end-span
  • Up to 8 IEEE 802.3af/2 IEEE 802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • 120-watt PoE budget
  • 8 ports supporting 52V DC power to PoE powered device (Ports 1 to 8)
  • Hardware DIP switch for "Standard", "VLAN' and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in the standard mode
  • Switching
  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 4K absolute MAC addresses
  • Automatic address learning and address aging
  • Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Hardware
  • 9-inch desktop size, 1U height, mountable
  • LED indicators for PoE ready/activity and LINK/ACT
  • Fanless design
  • Internal AC power supply
  • Support Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Specification
