FSD-604HP

מוצר קודם | מוצר הבא
תיאור מוצר

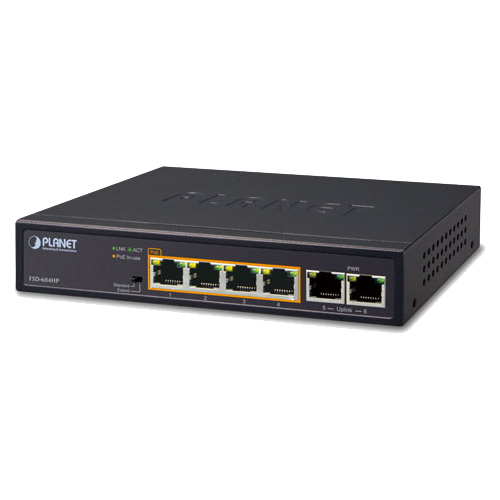

4-Port 10/100TX 802.3af/at PoE + 2-Port 10/100TX Desktop Switch (60 Watts)

RJ45 Interface
  • 6 10/100Mbps Fast Ethernet ports
  • 4 ports supporting 52V DC power to PoE powered device
  • Power over Ethernet
  • Complies with IEEE 802.3af/at Power over Ethernet end-span
  • Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • 60-watt PoE budget
  • Hardware DIP switch for "Standard" and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in the standard mode
Switching
  • Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • 1536bytes packet size
  • Integrates address look-up engine, supporting 2K absolute MAC addresses
  • Automatic address learning and address aging
  • Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware
  • Desktop palm size
  • LED indicators for PoE ready/activity and LINK/ACT
  • Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
  • Supports ±4KV surge immunity
  • Internal AC power supply

Specification
