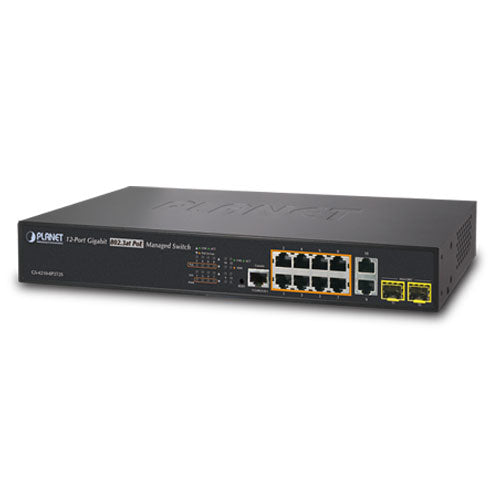

GS-4210-8P2T2S

  • GS-4210-8P2T2S - ADVICE.CO.IL
8-Port 10/100/1000Mbps 802.3at PoE + 2-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Managed Switch

Physical Port
  • 10-Port 10/100/1000Base-T Gigabit RJ45 copper with 8-Port IEEE 802.3at/af PoE Injector (Port-1 to Port-8)
  • 2 100/1000Base-X mini-GBIC/SFP slots
  • RJ45 console interface for switch basic management and setup
Power over Ethernet
  • Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
  • Complies with IEEE 802.3af Power over Ethernet End-Span PSE
  • Up to 8 ports of IEEE 802.3af / 802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE Management
  • - Total PoE power budget control
  • - Per port PoE function enable/disable
  • - PoE Port Power feeding priority
  • - Per PoE port power limitation
  • - PD classification detection
  • - PD alive-check
  • - PoE schedule
Layer 2 Features
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
  • - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
  • - Protocol VLAN
  • - Voice VLAN
  • - Private VLAN
  • - Management VLAN
  • - GVRP
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)
  • - RSTP (Rapid Spanning Tree Protocol)
  • - MSTP (Multiple Spanning Tree Protocol)
  • - STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • - Cisco ether-channel (Static Trunk)
  • - Maximum 8 trunk groups, up to 8 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
Quality of Service
  • Ingress / Egress Rate Limit per port bandwidth control
  • Storm Control support
  • - Broadcast / Unknown-Unicast / Unknown-Multicast
  • Traffic classification
  • - IEEE 802.1p CoS
  • - TOS / DSCP / IP Precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
  • Supports IGMP Snooping v2 and v3
  • Supports MLD Snooping v1, v2
  • IGMP Querier mode support
  • IGMP Snooping port filtering
  • MLD Snooping port filtering
Security
  • Authentication
  • - IEEE 802.1X Port-based network access authentication
  • - Built-in RADIUS client to co-operate with the RADIUS servers
  • - RADIUS / TACACS+ login user access authentication
  • Access Control List
  • - IPv4 / IPv6 IP-based ACL
  • - MAC-based ACL
  • MAC Security
  • - Static MAC
  • - MAC Filtering
  • Port Security for Source MAC address entries filtering
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • DoS Attack Prevention
  • SSH/SSL
Management
  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
  • - Web switch management
  • - Telnet Command Line Interface
  • - SNMP v1, v2c and v3
  • - SSH / SSL secure access
  • User Privilege Levels Control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP / TFTP
  • - Configuration upload / download through Web interface
  • - Dual Images
  • - Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Cable Diagnostics
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • SNMP trap for interface Link Up and Link Down notification
  • Event message logging to remote Syslog server
  • Four RMON groups (history, statistics, alarms, and events)
  • PLANET Smart Discovery Utility
  • Smart fan with speed control


Specification
